All in One Solar Streetlights 427501

All in one Solarlights.
Integrated Solar LED Streetlights.
The design of the all in one solar street light comes from the inspiration and power of the universe,combined the best energy saving parts—solar panel, led lamp and special battery. With the help of the controller and PIR sensor, it realizes the functions of high brightness with low energy, long lifespan and free maintenance. At the same time, it is very convenient to ship and install. It is one of the best patent products of our company.


All in one Solar LED Streetlights.
Integrated Solar LED Streetlights.

All in One solar led streetlights could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation.We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.
All in One solar led streetlights adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0 to 60 degree Celsius,when temperature goes lower than 0 degree Celsius ,the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0 degree Celsius. Discharging temperature at night is between: -20 to 60degree Celsius, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.
Battery of the All in One solar led streetlights can be stored for 6 months long after fully charged. Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
When you install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away from any shadow of houses, trees etc.
Keep clear of the surface of the All in One led streetlights with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
All in one solar led streetlights have got the standard of IP65. The vents on the surface is designed for radiating.The materials are made of aluminum alloy which can survive in the environment of seaside and desert.
Please turn on the switch when using.

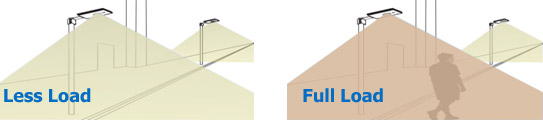

china less-load-solar-lights

Order no.LED PowerSolar panelFull load
Less load
Full power
Work time
Saving model
Work time
DimensionInstall heightLight space
427501-066W12W Mono600 LM200 LM>=12 hour>=24 hour420x265x50mm3-4m8-10m
427501-088W15W Mono800 LM250 LM>=12 hour>=12 hour515x320x52mm3-4m8-10m
427501-1212W18W Mono1200 LM380 LM>=12 hour>=24 hour515x320x52mm3-4m8-10m
427501-1515W25W Mono1500 LM470 LM>=12 hour>=24 hour700x420x140mm4-5m10-15m
Battery Type: LiFePo4 lithium battery.
Lighting fixture material: aluminium alloy.
Viewing Angle:120
PIR Sensor.
Color temperature: 6000-6500K.
Work temperature: charging: 0 to 60 degree Celsius. discharging: -20 to 60 degree Celsius. storage: 0 to 45 degree Celsius.
The data of working time was measured at latitude 22, 113 east longitude in sunny days.
The working time will be affected by the surroundings.
