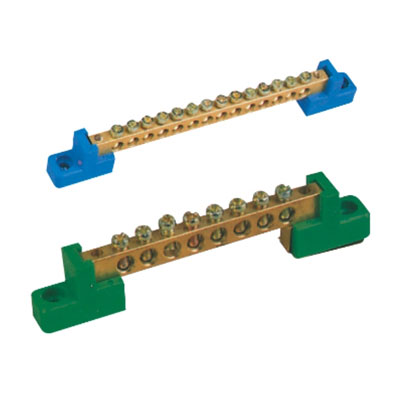

Brass Terminal Block 823103
Electrical Busbar Material:
PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation, Working Temperature:-40 to 65 degree Celsius.
PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: -30 to 110 degree Celsius.
Brass, screw is Iron plated zinc.
Voltage: 250 – 450V
Color: blue and green color as standard
We can according to customer require supply different size, such as, different length, width, hole diameter etc.
Description
Brass terminal block specification:
| Order no. | W * H | Hole | L mm | L1 mm | L2 mm | H mm | W in mm | Diameter | Screw | Plastic |
| 823103-694 | 6 x 9mm | 4 | 39 | 75 | 61.4 | 24.3 | 14.7 | 4.3mm | M4 x 8 | PE or PA |
| 823103-696 | 6 x 9mm | 6 | 51.5 | 87.5 | 74 | 24.3 | 14.7 | 4.3mm | M4 x 8 | PE or PA |
| 823103-698 | 6 x 9mm | 8 | 64 | 100 | 86.5 | 24.3 | 14.7 | 4.3mm | M4 x 8 | PE or PA |
| 823103-6910 | 6 x 9mm | 10 | 76.5 | 112.5 | 99 | 24.3 | 14.7 | 4.3mm | M4 x 8 | PE or PA |
| 823103-6912 | 6 x 9mm | 12 | 89 | 125 | 111.5 | 24.3 | 14.7 | 4.3mm | M4 x 8 | PE or PA |
| 823103-8124 | 8 x 12 mm | 4 | 54 | 83.5 | 71 | 21.5 | 12 | 6.5mm | M5 x 10 | PE or PA |
| 823102-8126 | 8 x 12 mm | 6 | 72 | 101.5 | 88.5 | 21.5 | 12 | 6.5mm | M5 x 10 | PE or PA |
| 823102-8128 | 8 x 12 mm | 8 | 90 | 118.9 | 106.5 | 21.5 | 12 | 6.5mm | M5 x 10 | PE or PA |
| 823102-81210 | 8 x 12 mm | 10 | 108 | 135.5 | 124.5 | 21.5 | 12 | 6.5mm | M5 x 10 | PE or PA |
| 823102-81212 | 8 x 12 mm | 12 | 126 | 155 | 143 | 21.5 | 12 | 6.5mm | M5 x 10 | PE or PA |
