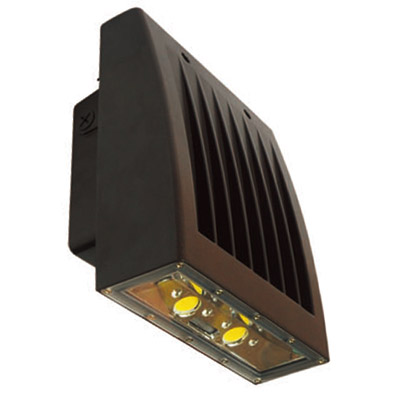

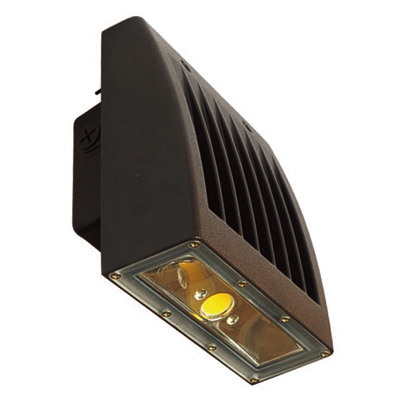

ETL Listed LED Wall Pack Lighting 726105

ETL Certificate LED Wall Pack Lighting.

a.Funnelled heat dissipation structure gives the wall lamp better heat dissipation effect
b.Philips,Samsung, CREE LEDs optional
c.Mean well driver
d.Dialux simulation service provided.
e.ETL ,DLC,CE,ROHS

SKU: 726105 Category:

Description

15W/30W/60W/80W ETL Certificate LED Wall Pack Lighting.

The application of the occasions:
Ideal for backyards, serivce road and effective as security and perimeter lighting.
Features:
Including series of patents, Unique funnel heat sinker, making the lamp better for heat dissipation. Fresnel teeth lighting design for the PC cover, which is suitable for wall light distribution.
Beauty for the appearance, using Philips or Cree LED.

Housing:
Rugged die-cast aluminum housing with powder coat gary finish. Cast heat dissipating fins. Internal slip fitter.
Reflector:
Polycarbonate reflactor.
Lens:
Polycarbonate lens.
Mounting:
Cast-in template for mounting directly over a 4 inch recessed outlet box mount with two piece swivel bracket, adjustable slip fitter.
Warranty: 5 years.
Ambient temp: -35 to 40 degree Celsius.

Order no.Input wattageDelivered LumensPowerLuminaire efficacyCRICCTPF
726104-L15-SF15W1530 LM90-305V102 LM/W>=704000/5000k0.95
726104-L15-BR15W1530 LM90-305V102 LM/W>=704000/5000k0.95
726104-L30-SF30W2550 LM90-305V85 LM/W>=704000/5000k0.95
726104-L30-BR30W2550 LM90-305V85 LM/W>=704000/5000k0.95
726104-L60-SF60W4920 LM90-305V82 LM/W>=704000/5000k0.95
726104-L60-BR60W4920 LM90-305V82 LM/W>=704000/5000k0.95
726104-L60-AM60W4920 LM90-305V82 LM/W>=704000/5000k0.95
726104-L85-SF85W7310 LM90-305V86 LM/W>=704000/5000k0.95
726104-L85-BR85W7310 LM90-305V86 LM/W>=704000/5000k0.95
726104-L85-AM85W7310 LM90-305V86 LM/W>=704000/5000k0.95
