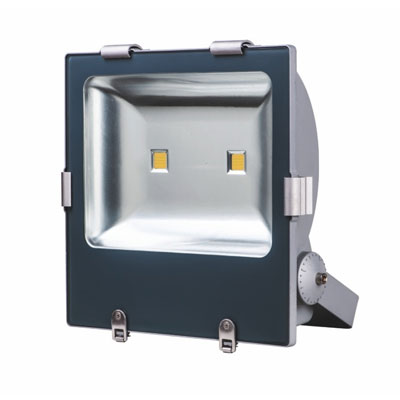

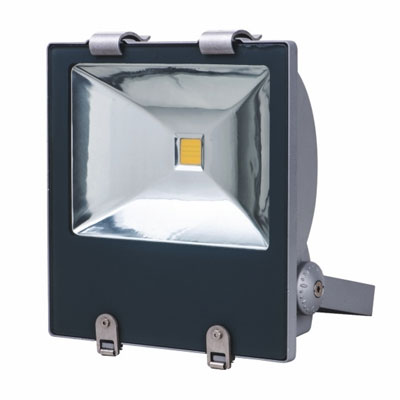

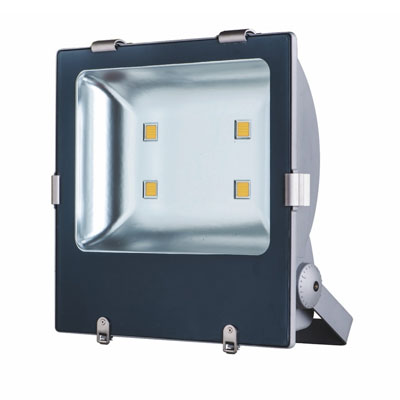

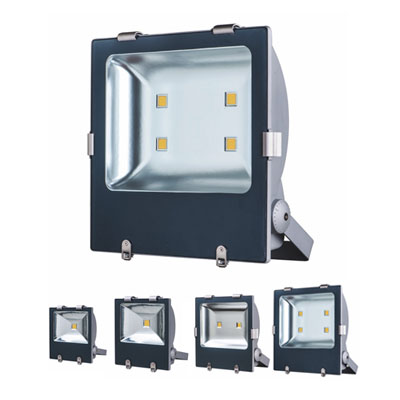

LED Flood lights 527112
LED flood lights
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure alloy reflector cover. Which make the lamp heavy and not easy to break.
b.Bridgelux light source
c.Meanwell driver or other.
d.Dialux simulation available
e.CE, PSE,ROHS
Description
a.Die-casting aluminum hosingand high intensity toughened glass over.
b.Black / Silver grey/ White for normal color . And also other colors can be avail-able as for custom color.
c.Fullyy seald with IP65 standard.
d.Epistar / Bridgelux LED chip used.
e.2 year warranty for normal.
f. Beam Angle: 110-120
g.85-265V AC
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
| Order No. | Color Temperature | Luminous Flux | Power consumption | LED QTY | Dimension |
| 527112-W10 | 2700-7000K | 750 LM | 11 W | 10W x 1 | 160x120x45 mm |
| 527112-W20 | 2700-7000K | 1500 LM | 22 W | 20W x 1 | 200x155x55 mm |
| 527112-W30 | 2700-7000K | 2250 LM | 34 W | 30W x 1 | 250x190x65 mm |
| 527112-W50 | 2700-7000K | 3750 LM | 56 W | 50W x 1 | 300x230x80 mm |
| 527112-W80 | 2700-7000K | 6000 LM | 90 W | 80W x 1 | 360x275x100 mm |
| 527112-W120 | 2700-7000K | 9000 LM | 136 W | 60W x 2 | 430x370x120 mm |
| 527112-W200 | 2700-7000K | 15000 LM | 227 W | 50W x 4 | 520x445x150 mm |
| 527112-W400 | 2700-7000K | 30000 LM | 454 W | 100W x 4 | 625x520x185 mm |
