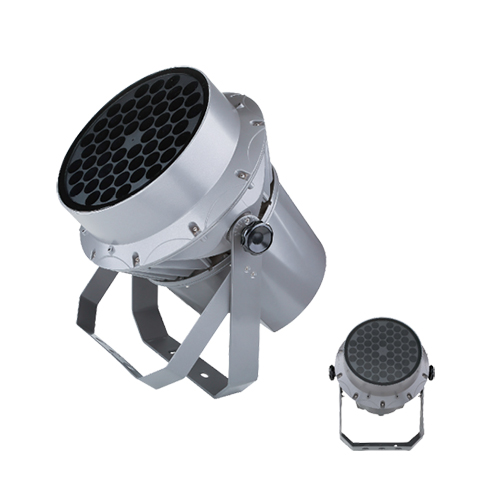

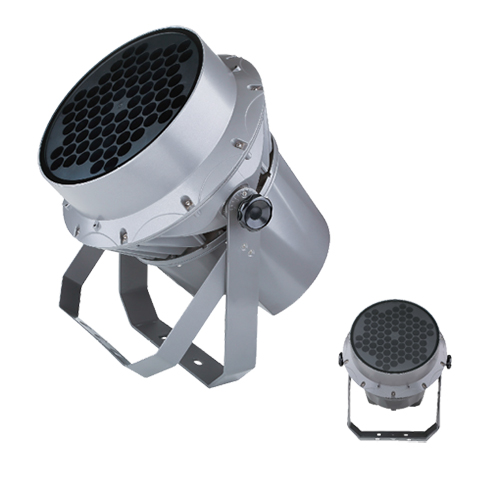

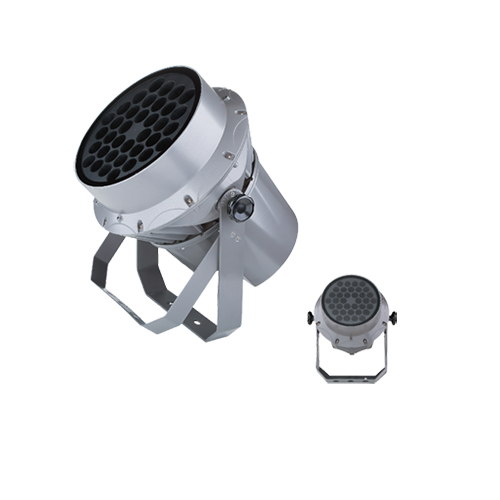

LED Flood Lights 527208
LED Flood Lights
a.Original design,creat top LED projector light. Fashion,modern outside design,make lamp become an art.Perfect combined with the environment.
b.Lamp’s main material is adopt high strength die-casting aluminum,cover adopt high toughen glass,shock and resistance rub resistance.Single double bracket use coorperatively.Alternative multiple accessories.Glare cover.
c.Powerful function,strong control ability.12 kinds of dynamic systems inside.Have original logarithmic dimming technology and mixture optical technology.The light varies soft and beautiful.
Description
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
Features:
a.Installation pipe diameter:Φ11x100mm.
b.Input Voltage(V):AC100-277.
c.Frequency range:50/60Hz.
d.Control mode:CC/DMX512.
e.Beam angle:6°15×70°
f.Working temperature:-35 to 50C.
g.LED Lifetime:70,000hours.
h.IP66 suitable for wet location.
| ORDER NO. | 527208A | 527208B | 527208C | 527208D | 527208E | 527208F |
| LED QTY | 72PCS | 72PCS | 54PCS | 54PCS | 36PCS | 36PCS |
| RATED POWER | 113/163W | 171W | 85/128W | 129W | 58/86W | 87W |
| COLOR | 72 SINGLE/18R18G18B18W | 72 SINGLE | 54 SINGLE/14R14G14B12W | 54SINGLE | 36 SINGLE/10R10G10B6W | 36SINGLE |
| LUMINOUS FLUX | 7710/4405LM | 8581LM | 5753/3287LM | 6528LM | 3810/2177LM | 4610LM |
| N.W | 12.7KGS | 12.7KGS | 9.8KGS | 9.8KGS | 7.7KGS | 7.7KGS |
| G.W | 13.7KGS | 13.7KGS | 10.5KGS | 10.5KGS | 8.25KGS | 8.25KGS |
| DIMENSION(MM) | 415*425*540 | 415*425*540 | 365*380*495 | 365*380*495 | 345*375*470 | 345*375*470 |
