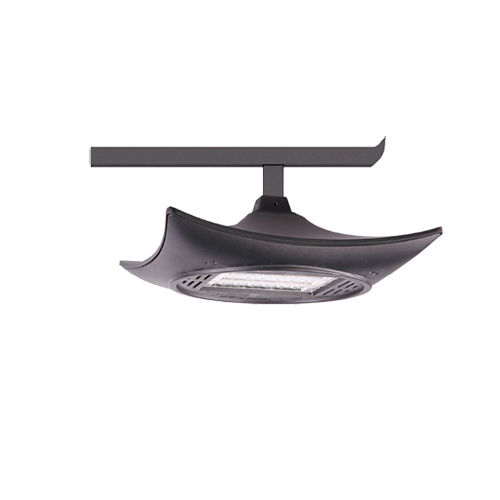

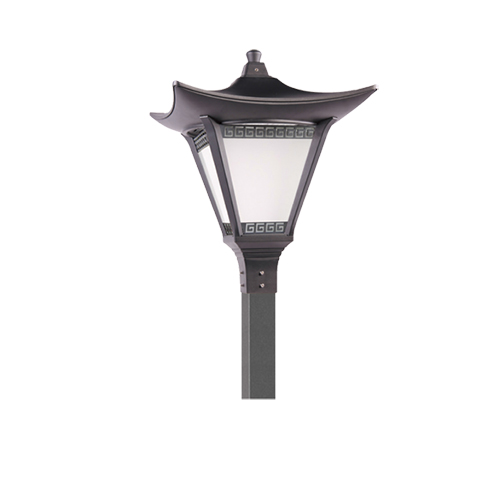

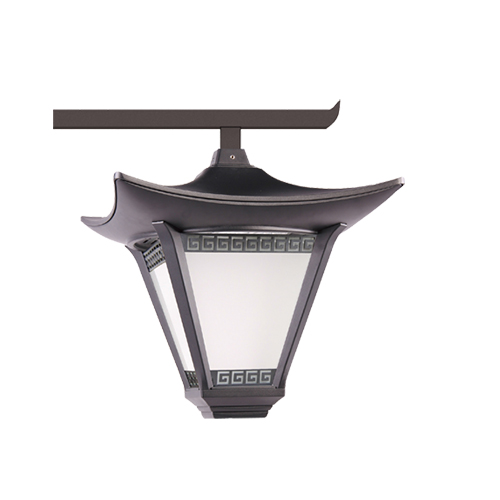

LED Garden Lights 523201
LED Garden Lights
a.This simple Chinese style luminaire is integrated with ancient Chinese Architecture element and modern concise style.
b.Body made of die-casting aluminum.Eletro-statically applied polyester powder coat finish.Resistant to impact and corrosion.
c.It adopts LED module as light source,easy for installation,replacement and maintenance.
d.Excellent light distribution,good uniform light and wide light spreading.
e.Humanized design,suitable for various applications.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Color Temperature:6500/4000/3000k.
b.Input Voltage is AC100-277V.
c.Frequency Range:50/60Hz.
d.Power Factor:PF>0.9.
e.Color rendering Index:>70.
f.Installation height:3-5m.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i:IP65.
| ORDER NO. | LED QTY | RATED POWER | LUMINOUS FLUX | INSTALLATION PIPE DIAMETER | N.W | G.W | DIMENSION(MM) |
| 523201A | 36PCS | 85W | 6475/5957/4884LM | Φ60MM | 7.8KGS | 9.3KGS | 570*570*665 |
| 523201B | 24PCS | 58W | 4316/3970/3255LM | Φ60MM | 7.4KGS | 8.9KGS | 570*570*665 |
| 523201C | 12PCS | 30W | 2158/1985/1627LM | Φ60MM | 7.1KGS | 8.6KGS | 570*570*665 |
| 523201D | 36PCS | 85W | 6475/5957/4884LM | 40X40MM | 7.4KGS | 9.0KGS | 570*570*665 |
| 523201E | 24PCS | 58W | 4316/3970/3255LM | 40X40MM | 7.0KGS | 8.5KGS | 570*570*665 |
| 523201F | 12PCS | 30W | 2158/1985/1627LM | 40X40MM | 6.7KGS | 8.2KGS | 570*570*665 |
| 523201G | 36PCS | 85W | 7869/7239/5936LM | 40X40MM | 6.3KGS | 7.8KGS | 570*570*265 |
| 523201H | 24PCS | 58W | 5244/4824/3956LM | 40X40MM | 6.0KGS | 7.2KGS | 570*570*265 |
| 523201I | 12PCS | 30W | 2624/2414/1979LM | 40X40MM | 5.7KGS | 7.0KGS | 570*570*265 |
