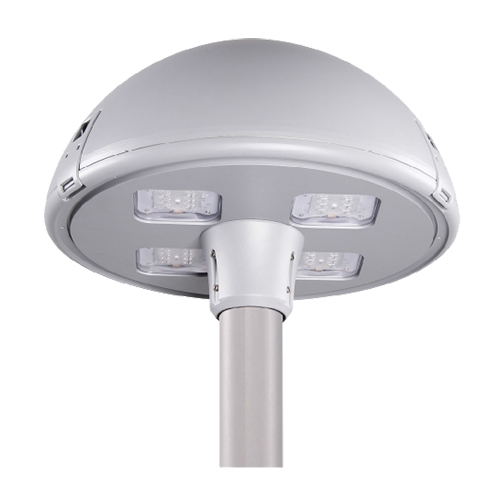

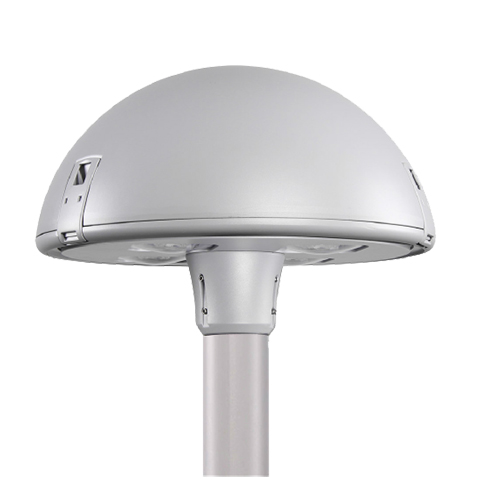

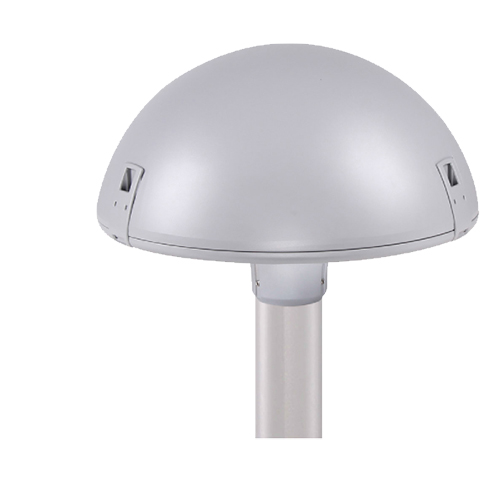

LED Garden Lights 523212
LED Garden Lights
a.High intensity die-cast aluminum body,impact grade reaches IK09.
b.The cover uses the optical PC material,anti-high temperature,anti-aging and anti-ultraviolet.
c.Modular optical lens design,easy to improve in future.
d.Clip-on design makes lamp easy to install,maintain and replace.
e.Detachable design,use fast turn off power protector makes lamp convenient for maintenance.
f.With surge protector lamp can reaches Class I(10KV) or Class II(5-9KV).
g.Optical controller,wireless single lamp controller,surge arrester optional.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Color Temperature:6500/4000/3000k.
b.Input Voltage is AC100-277V.
c.Frequency Range:50/60Hz.
d.Power Factor:PF>0.9.
e.Color rendering Index:>70.
f.Installation pipe diameter:Φ76mm.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP66.
j.N.W and G.W:566*566*432MM.
| ORDER NO. | ELECTRIC CURRENT | LED QTY | RATED POWER | LUMINOUS FLUX | N.W | G.W |
| 523212A | 1050 | 24PCS | 83W | 7140/6610/6080LM | 9.34KGS | 11.40KGS |
| 523212B | 700 | 24PCS | 55W | 5460/5060/4650LM | 9.34KGS | 11.40KGS |
| 523212C | 700 | 16PCS | 37W | 3710/3430/3160LM | 8.95KGS | 10.95KGS |
