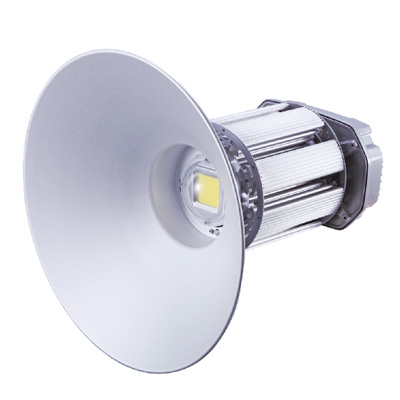

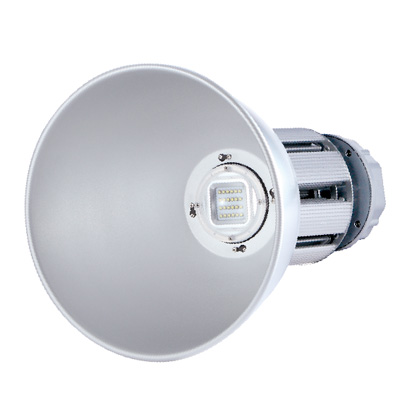

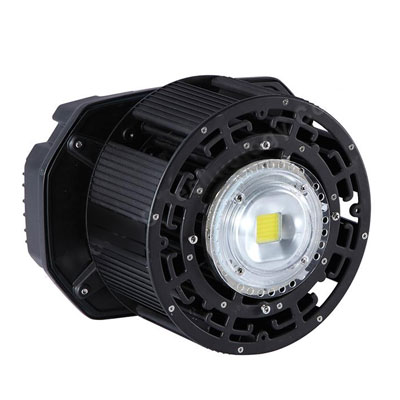

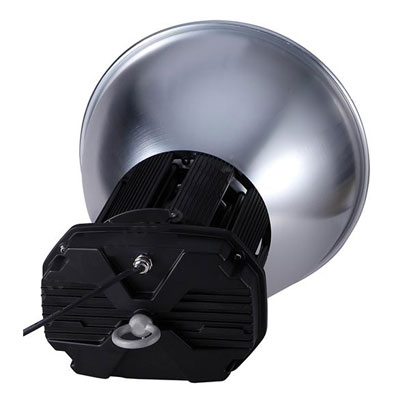

LED High Bay Lights 521201
TUV CE ROHS High Bay Lights
a. Applying heat pipe technology to obtain higher efficiency of heat dissipation, lighter of aluminum housing.
b. Design of module aluminum housing can improve horizontal heat convection to prevent driver casing overheating and protect the driver working under normal temperature.
c. Certificate approved LED explosion-proof light in Asia area.
d. LED chip: Epistar/Bridgelux/Cree/Philips.
e. Power supply: Mean well.
f. DIALUX simulation available.
DLC UL EAC NOM N136 TUV certificate optional.
Description
IP Rating: IP54/IP65
Certification: CE,ROHS ,TUV,PSE，UL，DLC，CCC
Power Fact:>0.9
Warranty: 3 year
Beam Angle: 45/90/120DEG
OP. Frequency :50-60HZ
Input Voltage Range:90-265VAC
Luminous Efficiency: 85-100LM/W
Color Rendering Index (CRI): >70
Working Environment: -30-40C

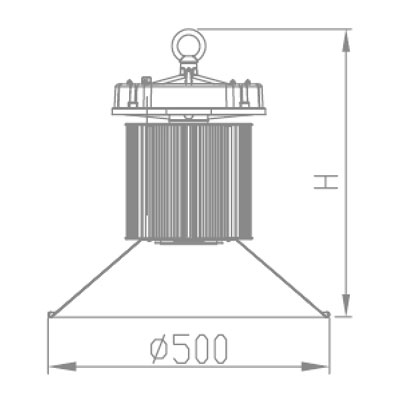

| Order No. | Power | Luminous Flux (5000K) | Colour Temperature | Dimension (DxH)in mm |
| 521201-30W | 30W | 2730 LM | 2700-6500K | 500×411 |
| 521201-50W | 50W | 4600 LM | 2700-6500K | 500×411 |
| 521201-80W | 880W | 7400 LM | 2700-6500K | 500×461 |
| 521201-100W | 100W | 9800 LM | 2700-6500K | 500×461 |
| 521201-120W | 120W | 11000 LM | 2700-6500K | 500×511 |
| 521201-150W | 150W | 13600 LM | 2700-6500K | 500×511 |
| 521201-180W | 180W | 17600 LM | 2700-6500K | 500×561 |
| 521201-200W | 200W | 19600 LM | 2700-6500K | 500×561 |
