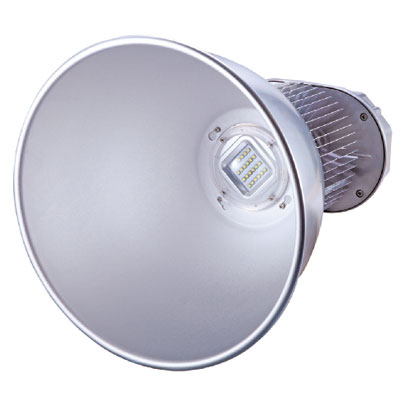

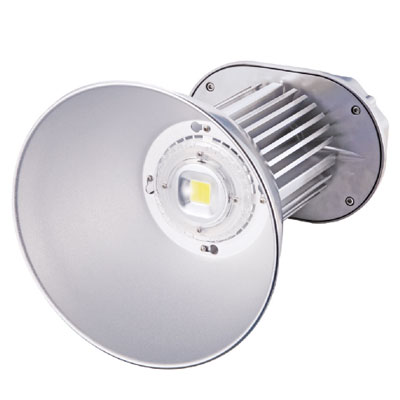

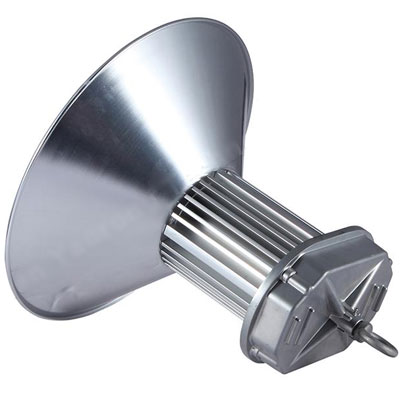

LED High Bay Lights 521203
UL DLC LED High Bay Lights

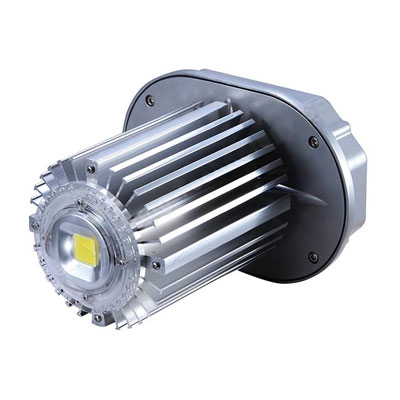

a. Heat sink: fin type and copper cylinder
b. LED chip: Epistar or Bridgelux
c. Driver: MeanWell
d. Dialux simulation available.
e, High performance aluminum radiator.
f, The power box can dissipate the heat independently, ensure the driver under low temperature,to ensure the long life span.
g, Beautiful appearance, equipped with Bridgelux or Cree chip makes the LED light source ob-taining excellent protection of optical attenuation and heat conduction ratio.
h, It is equipped with Meanwell driver, it keeps the stableness, life and performance of luminairein optimal status.
Description
IP Rating: IP54/IP65
Certification: UL DLC TUV CE optional
Driver efficiency:>0.86
Warranty: 3 year
Beam Angle: 45/90/120DEG
OP. Frequency :50-60HZ
Input Voltage Range:85-265V AC
Luminous Efficiency: 85-100LM/W
Color Rendering Index (CRI): >70
Working Environment: -40-50 C
| Order No. | Beam Angle | Luminous Flux (5000K) | Dimension (mm) | System Power |
| 521203-W60-45 | 45 | 4400 LM | 420*420*507 | 55 /- 3W |
| 521203-W60-90 | 90 | 4510 LM | 500*500*443 | 55 /- 3W |
| 521203-W60-120 | 120 | 4675 LM | 500*500*393 | 55 /- 3W |
| 521203-W90-45 | 45 | 7200 LM | 420*420*557 | 90 /- 3W |
| 521203-W90-90 | 90 | 7380 LM | 500*500*493 | 90 /- 3W |
| 521203-W90-120 | 120 | 7650 LM | 500*500*443 | 90 /- 3W |
| 521203-W110-45 | 45 | 8800 LM | 420*420*587 | 110 /- 3W |
| 521203-W110-90 | 90 | 9020 LM | 500*500*523 | 110 /- 3W |
| 521203-W110-120 | 120 | 9350 LM | 500*500*473 | 110 /- 3W |
| 521203-W130-45 | 45 | 10400 LM | 420*420*559 | 130 /- 10W |
| 521203-W130-90 | 90 | 10660 LM | 500*500*491 | 130 /- 10W |
| 521203-W130-120 | 120 | 11050 LM | 500*500*444 | 130 /- 10W |
| 521203-W170-45 | 45 | 13600 LM | 420*420*639 | 170 /- 10W |
| 521203-W170-90 | 90 | 13940 LM | 500*500*571 | 170 /- 10W |
| 521203-W170-120 | 120 | 14450 LM | 500*500*524 | 170 /- 10W |
| 521203-W200-45 | 45 | 16000 LM | 420*420*639 | 200 /- 10W |
| 521203-W200-90 | 90 | 16400 LM | 500*500*571 | 200 /- 10W |
| 521203-W200-120 | 120 | 17000 LM | 500*500*524 | 200 /- 10W |
| Color Temperature 3000K 4000K 5000K optional | ||||
