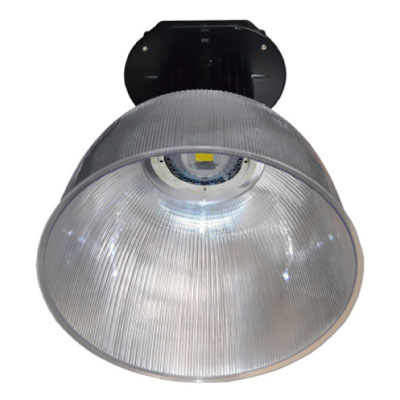

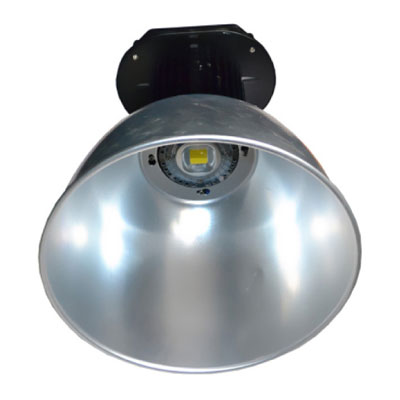

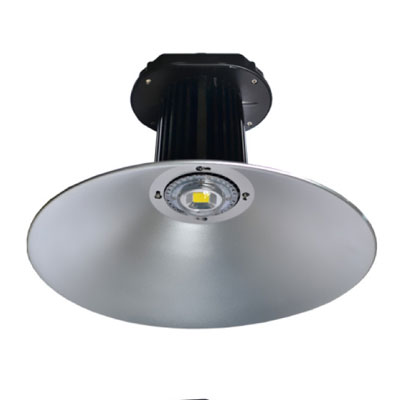

LED High Bay Lights 521204

TUV CE ROHS PSE LED High Bay Lights

Application:
Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.
Features:
a, High performance aluminum radiator.
b, The power box can dissipate the heat independently, ensure the driver under low temperature, to ensure the long life span.
c, Beautiful appearance, equipped with Bridgelux chip makes the LED light source obtaining excellent protection of optical attenuation and heat conduction ratio.
d, It is equipped with Meanwell driver, it keeps the stableness, life & performance of luminaire in optimal status.

SKU: 521204 Category:

Description

Certification: TUV CE ROHS PSE SAA optional
LED: Bridge or Epistar
Driver: Meanwell
Driver efficiency:>0.9
Warranty: 3 year
Beam Angle: 45/90/120DEG
OP. Frequency :50-60HZ
Input Voltage Range:100-240V AC
Color Rendering Index (CRI): >70
Working Environment: -35-45 C

   Order No.      Beam Angle  CCT   Lumen Efficiency    Dimension (mm)     System Power
521204-W30-4545   3000-6500K   85-100 Lm/W420*420*46734 /- 3W
521204-W30-90903000-6500K85-100 Lm/W500*500*40334 /- 3W
   521204-W30-120  1205500-6000K 85-100 Lm/W500*500*35334 /- 3W
521204-W50-45453000-6500K85-100 Lm/W420*420*50755 /- 3W
521204-W50-90903000-6500K85-100 Lm/W500*500*44355 /- 3W
   521204-W50-120  1203000-6500K85-100 Lm/W500*500*39355 /- 3W
521204-W60-45453000-6500K85-100 Lm/W420*420*52766 /- 3W
521204-W60-90903000-6500K85-100 Lm/W500*500*46366 /- 3W
   521204-W60-120  1203000-6500K85-100 Lm/W500*500*41366 /- 3W
521204-W80-45453000-6500K85-100 Lm/W420*420*55790 /- 3W
521204-W80-90903000-6500K85-100 Lm/W500*500*49390 /- 3W
521204-W80-1201203000-6500K85-100 Lm/W500*500*44390 /- 3W
521204-W120A-45453000-6500K85-100 Lm/W420*420*607133 /- 3W
521204-W120A-90903000-6500K85-100 Lm/W500*500*543133 /- 3W
   521204-W120A-120  1203000-6500K85-100 Lm/W500*500*493133 /- 3W
