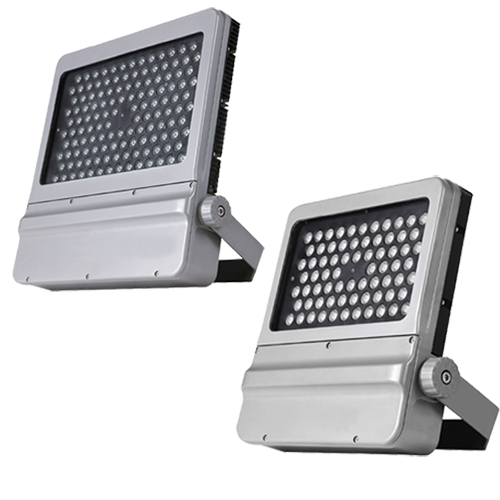

LED Middle-High Mast Lights 528901
LED Middle-High Mast Lights
a.Owned design patent ,have various advanced technologies.
b.Used the die-casting aluminum for the main part,which has advantages for anti-shock and anti-corrosion.
c.The main material for radiator is 6063 aluminum alloy,made by special treatment.
d.With high performance for light distribution.
e.High strength toughened glass,using special treatment with better ultraviolet resistance.
f.Humanized structural design,convenient for installation and maintenance.
1. Installation angle could be adjusted between -45 to 75 degree,which is suitable to various installation methods.
2.External box for wire,patent design,makes wire connection outside of the wiring space.Convenient to operate and enhance the light IP.
Description
Application:
Highway road, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Owned design patent,have various advanced technologies.
b. Color Temperature:6500/4000/3000k.
c.Installation Pipe Diameter:Φ12x100mm.
d.The power factor is greater than 0.9.
e.Input Voltage is AC100-277V.
f. Frequency Range:50/60Hz.
g.CRI (Ra>):70.
h.Beam Angle:10° 25° 40° 60°
i. Working Temperature(℃):-35 to 50.
j.IP65.
k. System rating is at 70,000 hours.
| ORDER NO. | LED QUANTITY | RATED POWER | LUMINOUS FLUX | N.W | G.W | DIMENSION(MM) |
| 528901A | 132PCS | 158W | 12000/11040/9141LM | 16.4KGS | 18.4KGS | 565*195*640 |
| 528901B | 132PCS | 198W | 14640/13468/11044LM | 16.4KGS | 18.4KGS | 565*195*640 |
| 528901C | 72PCS | 86W | 6652/6119/5067LM | 10.2KGS | 10.9KGS | 445*185*535 |
| 528901D | 72PCS | 127W | 8781/8078/6624LM | 10.2KGS | 10.9KGS | 445*185*535 |
