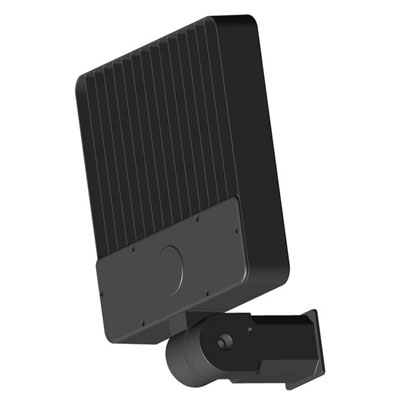

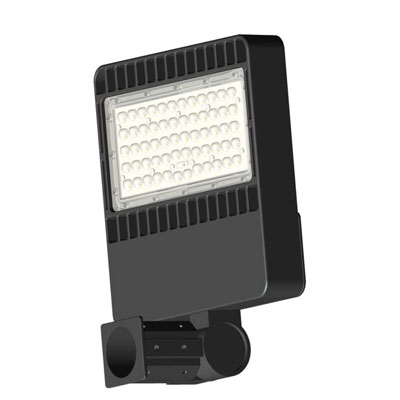

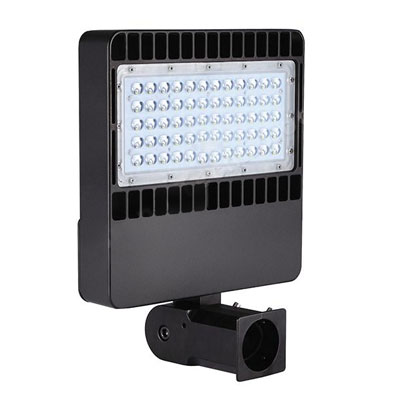

LED Parking Lot Lights 573101
LED Parking Lot Lights
a.Module lens design make the lamp with well suited lighting distributing.
b.Cree LEDs, Mean well driver.
c.Installation angle -90~ 90 deg is adjustable.
d.DIALUX simulation design available.
e.ETL DLC CE ROHS
Description
The application of the occasions:
Parking Lot lighting, wall lighting area, street lighting.etc.
Features:
a.Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
b.Hollow out heat sink design make the lamp lighter and good heat dissipation.
c.Installation angle -90 to 90 angle is adjustable.
d.Beautiful appearance, using Cree LED Chips.
e.Meanwell Driver are applied.
f.IP65
g.CCT 3000K 4000K 5000K 6000K optional
h. PF>0.9, Ra>=70
i.Input voltage:85-305V
| Order No. | CCT | Lumens | System Power | LED No. | Dimension | Packing | Net Weight |
| 573101-W20 | 5000K | 1800 LM | 20 /- 3W | 10 pcs | 275x364x176 mm | 400x395x115 mm | 4.5 kg |
| 573101-W40 | 5000K | 3600 LM | 40 /- 3W | 20 pcs | 275x364x176 mm | 400x395x115 mm | 4.5 kg |
| 573101-W60 | 5000K | 5400 LM | 60 /- 3W | 30 pcs | 275x364x176 mm | 400x395x115 mm | 4.5 kg |
| 573101-W80 | 5000K | 7600 LM | 80 /- 8W | 36 pcs | 275x364x176 mm | 400x395x115 mm | 6.8 kg |
| 573101-W100 | 5000K | 9500 LM | 100 /- 8W | 48 pcs | 343x432x176 mm | 590x395x115 mm | 6.8 kg |
| 573101-W120 | 5000K | 11400 LM | 120 /- 8W | 60 pcs | 343x432x176 mm | 590x395x115 mm | 6.8 kg |
| 573101-W150 | 5000K | 14000 LM | 145 /- 8W | 60 pcs | 343x432x176 mm | 590x395x115 mm | 6.8 kg |
