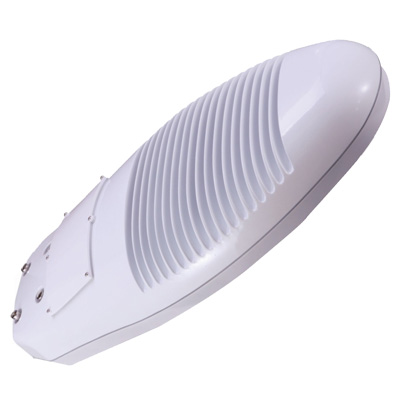

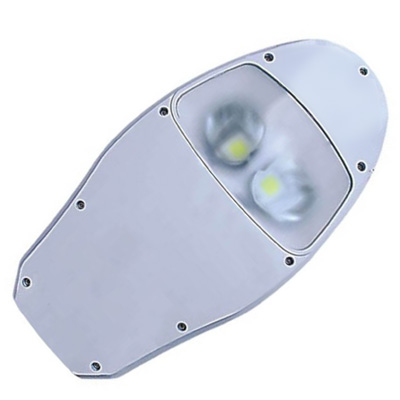

LED Street Lights 528203
COB Led Street Lights
a. Highly Previous glass lens are used to creat better distribution for street lighting requirement.
b. Using 110-120lm/w Bridgelux/Epistar
c. High quality MEANWELL driver.
d. Dialux simulation service provided.
Description
Application:
Street, Garden ,Squares ,School ,Park ,Yards ,pavements
Features:
1 Unique design for heat dissipation and heat conduction ,making the lamp lighter and better for heat dissipation.
2 Beauty for the appearance ,using COB Bridgelux or Epistar led chip.
3 IP65.
4.System rating is at 50,000 hours
5.CE PSE ROHS.
6.Temperature Rated at – 40 to 40 C.
7.Standard colors: Silver .RAL or custom colors available with minimum order quantities and extended lead times.
8.Color temperature 3000K 4000K 5000K 6000K optional.
9.Driver efficiency >0.9
10.Input Voltage: 100-277V AC
11.Storage temperature: -40 to 45C
| Order No. | LED | CCT | CRI | Luminous Flux | Dimension (mm) | System Power |
| 528203-W60 | Bridgelux / Epistar | 5500K /- 500K | >=70 | 5500 LM /- 500LM | 710*210*350 | 65W /- 5W |
| 528203-W80 | Bridgelux / Epistar | 5500K /- 500K | >=70 | 7000 LM /- 500LM | 710*210*350 | 90W /- 5W |
| 528203-W100 | Bridgelux / Epistar | 5500K /- 500K | >=70 | 9000 LM /- 500LM | 710*210*350 | 110W /- 5W |
| 528203-W120 | Bridgelux / Epistar | 5500K /- 500K | >=70 | 11000 LM /- 700LM | 820*230*390 | 130W /- 5W |
| 528203-W140 | Bridgelux / Epistar | 5500K /- 500K | >=70 | 13000 LM /- 700LM | 820*230*390 | 150W /- 5W |
