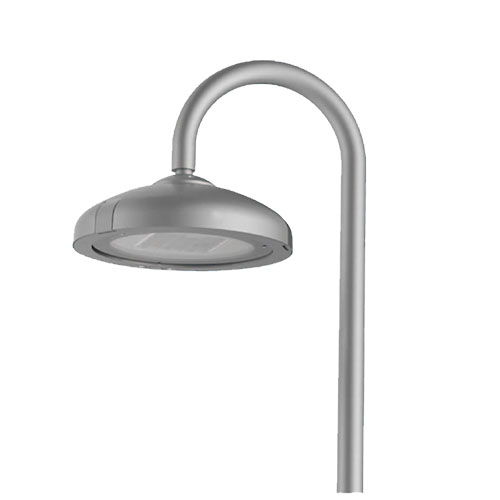

LED Street Lights 528305
LED Street Lights
a.Tempered glass with 94% light transmittance ensures lamp reaches IK08.
b.High in quality.
c.Standard colors: Metal grey,white,black or pearl powder colors available with minimum order quantities and extended lead times.
d.With surge protector lamp can reaches Class I(10KV) or Class II(5-9KV).
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Tempered glass with 94% light transmittance ensures lamp reaches IK08.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage:AC100-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f.Using high brightness leds,color rendering index greater than 70 .
g.Temperature Rated at -35 to 50C.
h.IP66 suitable for wet locations.
i.LED Lifetime:70,000hours.
j.Installation Pipe Diameter:Φ48mm.
k.N.W and G.W:10.1/12.1kgs
l.Dimension:545*545*275mm
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT |
| 528305A | 700 | 36PCS | 80W | 8590/7950/7320LM | 6-8M |
| 528305B | 500 | 54PCS | 88W | 10010/9270/8530LM | 8-10M |
| 528305C | 700 | 24PCS | 53W | 5730/5300/4880LM | 5-7M |
| 528305D | 500 | 36PCS | 59W | 6810/6300/5800LM | 6-8M |
