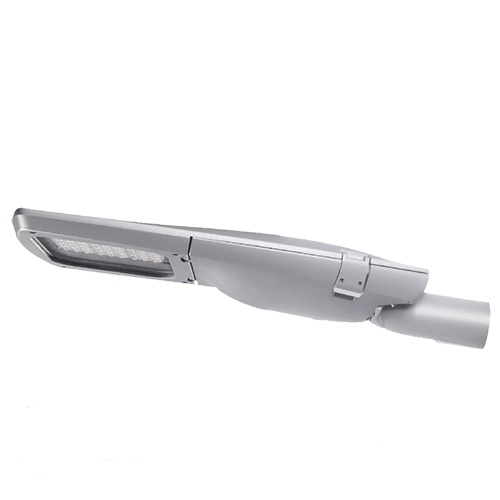

LED Street Lights 528313
LED Street Lights
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b.Luminaire tilt adjustment,side entry:-15° to 15°.
c.Luminaire tilt adjustment, post top:0° to 15°.
d.IP Rating:IP66
e.Clip-on design makes lamp easy to install,maintain and replace.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b.Color temperature 3000K 4000K 6500K optional.
c.Input Voltage(V):AC100-277.
d.Frequency Range:50/60Hz.
e.Power factor:PF>0.9.
f.CRI (Ra>):70.
g.Working Temperature(℃):-35 to 50.
h.System rating is at 70,000 hours.
i.IP66.
j.Installation Pipe Diameter:Φ60mm/Φ76mm.
k.Installation height:10-12M.
l.N.W and G.W. :11.3kgs/13.9kgs.
m.Dimension(mm):975*515*180mm.
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX |
| 528313A | 525 | 96PCS | 155W | 18000/16600/15300LM |
| 528313B | 700 | 72PCS | 159W | 17200/15900/14600LM |
