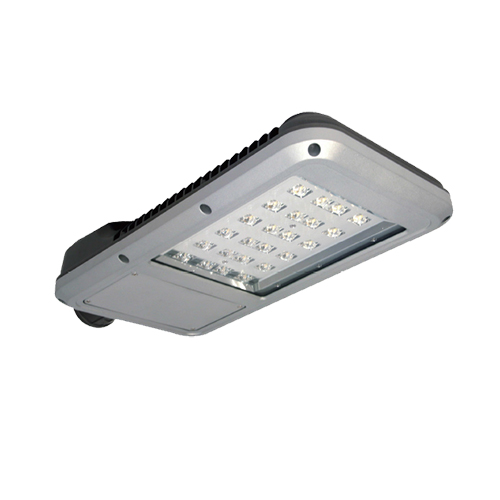

LED Street Lights 528326
LED Street Lights
a.3 in 1 LED street light,including the special patent technology,best heat radiation and also the best optics.
b.The main structure is aluminum,and the surface with electrostatic spray and anti-corrosion treatment.
c.Humanized design of the structure and the easy installation.
d.Angle changing accessory optional.
Description
Application:
City expressway,pathway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.3 in 1 LED street light,including the special patent technology,best heat radiation and also the best optics.
b.LED Quantity:24pcs.
c.Color temperature 3000K 4000K 5000K 6000K optional.
d.Input Voltage(V):AC100-277.
e. Frequency Range:50/60Hz.
f. The power factor is greater than 0.9.
g. CRI (Ra>):70.
h. Working Temperature(℃):-35 to 50.
i.LED Lifetime:70,000hours.
j.IP65.
k.Installation Pipe Diameter:Φ48mm/Φ60mm.
l. Installation height:4-6M.
m. Dimension(mm):615*323*175.
| ORDER NO. | 528326A | 528326B | 528326C | 528326D |
| RATED POWER | 31W | 37W | 56W | 86W |
| LUMINOUS FLUX | 3450/3200/2590LM | 4010/3710/3010LM | 5540/5130/4160LM | 6950/6430/5210LM |
| N.W | 5.3KGS | 5.3KGS | 5.3KGS | 5.6KGS |
| G.W | 5.7KGS | 5.7KGS | 5.7KGS | 6.0KGS |
