LED Street LIGHTS 528329

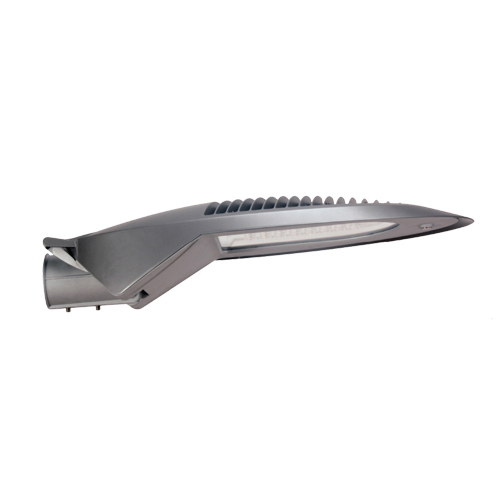

LED Street Lights
a.Excellent heat radiation,optical and electrical ability.
b.Die-cast aluminum body with powder-coating and anti-corrosion surface treatment.
c.Diffuser with 4.00mm super withe toughened glass.
e.Humanized design concept,easy to install and maintain.
f.When vertical install LED light,adjust angle is from 0-10° .
g.When horizontal install LED light,adjust angle is ±5° .
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Excellent heat radiation ,optical and electrical ability.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage is AC100-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f. Color rendering Index:>70.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP65.
j. Installation Pipe Diameter:Φ48mm/Φ60mm.
k.Dimension(mm):721*371*195mm.
| ORDER NO. | 528329A | 528329B | 528329C | 528329D | 528329E | 528329F |
| LED QUANTITY | 54PCS | 32PCS | 24PCS | 54PCS | 32PCS | 24PCS |
| RATED POWER | 61W | 37W | 31W | 82W | 55W | 37W |
| LUMINOUS FLUX | 7160/6630/5370LM | 4070/3760/3050LM | 3330/3080/2500LM | 9340/8650/7000LM | 5800/5380/4350LM | 3810/3530/2860LM |
| INSTALLATION HEIGHT | 6-8M | 5-7M | 4-6M | 6-8M | 5-7M | 4-6M |
| N.W | 5.93KGS | 5.6KGS | 5.6KGS | 5.93KGS | 5.6KGS | 5.6KGS |
| G.W | 7.08KGS | 6.75KGS | 6.75KGS | 7.08KGS | 6.75KGS | 6.75KGS |
