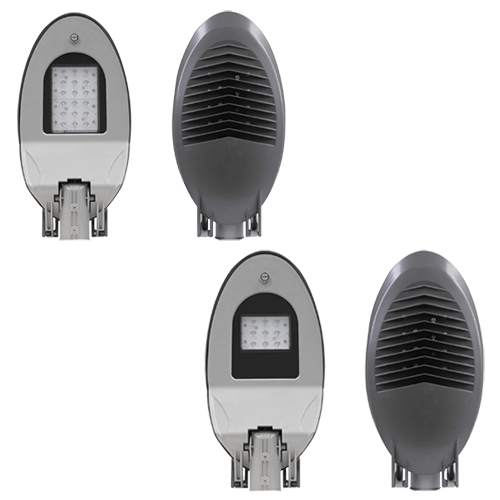

LED Street Lights 528330
LED Street Light
a.High strength die-casting aluminum alloy cover with electrostatic spray surface treatment.
b.Diffuser with 4.0mm super white toughened glass.
c.Adapt to multiple installation methods and multiple angle adjustment.
d.Adopt modular light distribution lens.
e.When maintaining LED light,upper cover with support bar which is easy and convenient.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.High strength die-casting aluminum alloy cover with electrostatic spray surface treatment.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage is AC100-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f.Color rendering Index:>70.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP65.
j.Installation Pipe Diameter:Φ48mm.
k.Installation height:3-6m.
l. Packing Size:565*315*185mm.
| ORDER NO. | LED QUANTITY | RATED POWER | LUMINOUS FLUX | N.W | G.W |
| 528330A | 18PCS | 63W | 5280/5060/4300LM | 3.2KGS | 4.0KGS |
| 528330B | 18PCS | 43W | 3850/3570/2890LM | 2.95KGS | 3.70KGS |
| 528330C | 12PCS | 28W | 2540/2350/1900LM | 2.95KGS | 3.70KGS |
| 528330D | 9PCS | 23W | 2010/1860/1500LM | 2.75KGS | 3.5KGS |
