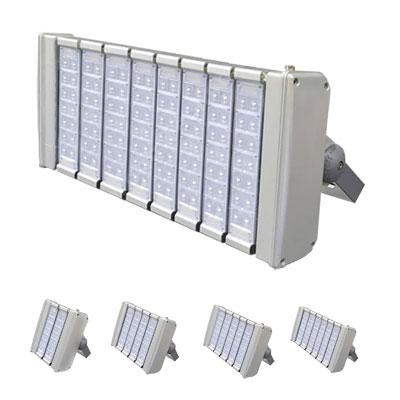

LED Tunnel lights 613102

Module LED Tunnel lights

a.the modular design. The light efficiency reach 100 lm/w
b.Philips rebel light source
c.Meanwell driver
d.Dialux simulation service provided.
e.CE ROHS

SKU: 613102 Category:

Description

Applications
Factory ,warehouse ,tunnel ,stadium etc

Features:
Instant light
Easy to maintain ,easy to upgrade.
120lm/w Philips led chip.
Unique design for power supply box.
Adjustable bracket.
Beautiful appearance
Color temperature :5000K ( Available in all color temperatures).
CRI>70
Housing material: Die cast Aluminum
Voltage: Universal range :90-265VAC
LM/W:85-90LM/W
Life time to 70% Luminous flux: 60,000 hours

   Order No.     Lumens  Dimension   Net Weight     Gross Weight     Carton Dimension
613102-W605850 LM310x265x163 mm5.0 Kg5.6 Kg335x365x225 mm
613102-W909000 LM310x330x163 mm5.7 kg6.3 kg410x365x225 mm
613102-W12012150 LM310x395x163 mm7.1 kg8.0 kg485x365x225 mm
613102-W15014850 LM310x460x163 mm8.0 kg9.0 kg560x365x225 mm
613102-W18018000 LM310x525x163 mm8.9 kg9.9 kg635x365x225 mm
   613102-W210  20700 LM310x590x163 mm10.0 kg11.6 kg710x365x225 mm
613102-W24023520 LM310x655x163 mm10.9 kg12.0 kg785x365x225 mm
