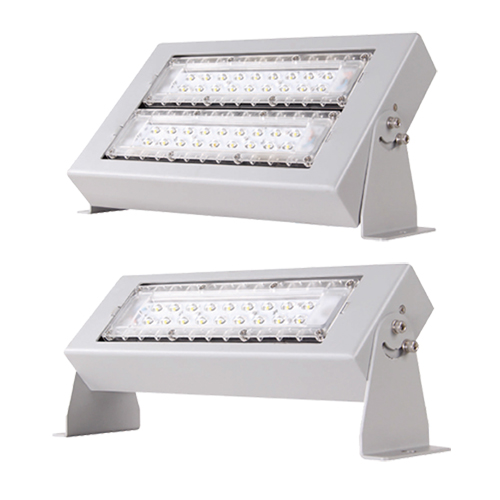

LED Tunnel Lights 613201
LED Tunnel Lights
a.Using industry-standard,low-cost modular light tunner lights.
b.Meet the tunnel road lighting standard.
c.Using 1-2 light source module,module of waterproof reach to IP66.
d.The power of 45W/60W/90W/120W to meet the different needs of customers.
e.Using the existing light source module radiator(die-casting & forging radiator).
f.Simple and elegant appearance,easy to install,adjustable angle,easy accessibility.
Description
Applications
Factory ,warehouse ,tunnel ,stadium etc
Features:
a.Using industry-standard,low-cost modular light tunnel lights.
b.Color temperature :6500/4000/3000k.
c. Input voltage(V):AC200-240.
d.Frequency range:50/60Hz.
e.Power Factor:PF>0.9.
f.CRI>70.
g.Working temperature:-35 to 50C.
h.LED Lifetime >70,000hours.
i.IP66 suitable for wet location.
| ORDER NO. | 613201A | 613201B | 613201C | 613201D |
| ELECTRIC CURRENT | 700 | 850 | 700 | 850 |
| LED QTY | 36PCS | 36PCS | 18PCS | 18PCS |
| RATED POWER | 81.5W | 98.5W | 42W | 51W |
| LUMINOUS FLUX | 9160/8480/7800LM | 10640/9850/9060LM | 4580/4240/3900LM | 5320/4930/4530LM |
| N.W | 4.1KGS | 4.1KGS | 2.6KGS | 2.6KGS |
| G.W | 4.8KGS | 4.8KGS | 3.1KGS | 3.1KGS |
| DIMENSION(MM) | 450*260*190 | 450*260*190 | 450*180*190 | 450*180*190 |
