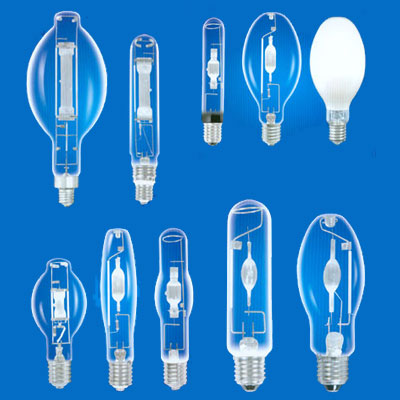

Metal Halide Lamps 862102
Full range of Metal Halide Lamps 50,70,100,150,175,250,400,1000,2000W.
European Standard Metal Halide Lamps，
North American Standard Metal Halide Lamps.
In OSRAM/PHILIPS/GE/UPS Model.
High luminous efficiency, average of 100LM/W.
Wider ranges of color temperature: 3,000 – 20,000K.
With differnt Bulb Shape:Tubular/BT/ED/ET.
Wide range of Color :Daylight(4k/6k),Warmligt(3k),Pink,Blue,Green.
With Different Bulb Base:E39/E40/E26/E27.
Applications:
Lighting of supermarkets and exhibition centers.
Railway stations, bus stations, yards, outdoor and indoor lighting.
Lighting of stadiums, gymnasiums and airports.
Description
Metal Halide Bulb Series Specifications:
| Order no. | Wattage | Color Temperature | Voltage | Current | Luminous Flux | Average Life | Base | Bulb Type | Bulb Finish | CRI |
| Tubluar Metal Halide Bulb Series, Daylight 4200K/6000K: | ||||||||||
| 862102-MH-T70/4K | 70W | 4200K | 85-95V | 0.98A | 5600 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T70/6K | 70W | 6000K | 85-95V | 0.98A | 4500 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T100/4K | 100W | 4200K | 90-100V | 1.20A | 8500 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T100/6K | 100W | 6000K | 90-100V | 1.20A | 8000 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T150/4K | 150W | 4200K | 90-100V | 1.80A | 13300 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T150/6K | 150W | 6000K | 90-100V | 1.80A | 11250 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T175A | 175W | 4200K | 122-142V | 1.50A | 14000 LM | 10000 h | E26/E27 | T38 | Clear | 65 |
| 862102-MH-T175B | 175W | 4200K | 122-142V | 1.50A | 14000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T250/4K | 250W | 4200K | 122-142V | 2.15A | 25000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T250/6K | 250W | 6000K | 122-142V | 2.15A | 20500 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T250/6K2 | 250W | 6000K | 122-142V | 3.0A | 20500 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T400/4K | 400W | 4200K | 125-135V | 3.25A | 38000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T400/6K | 400W | 6000K | 125-135V | 3.25A | 32000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-TO400/6K1 | 400W | 6000K | 125-135V | 3.25A | 32000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-TO400/6K2 | 400W | 6000K | 125-135V | 4.0A | 32000 LM | 10000 h | E39/E40 | T46 | Clear | 65 |
| 862102-MH-T1000 | 1000W | 6000K | 135V | 7.5A | 88000 LM | 8000 h | E39/E40 | T65/BT180 | Clear | 65 |
| 862102-MH-BT1000AM | 1000W | 4200K | 263V | 4.1A | 110000 LM | 8000 h | E39/E40 | T65/BT180 | Clear | 65 |
| 862102-MH-T1000EU | 1000W | 4200K | 135V | 7.5A | 88000 LM | 8000 h | E39/E40 | T65/BT180 | Clear | 65 |
| Elliptical Metal Halide Lamps: (Clear or Coated optional) | ||||||||||
| Order no. | Wattage | Color Temperature | Buring Position | Current | Luminous Flux | Average Life | Base | Bulb Type | Bulb Finish | CRI |
| 862102-MH-ED50/3K | 50W | 3000K | BU±15° | 0.68A | 4260 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED50/4K | 50W | 4200K | BU±15° | 0.68A | 4260 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED50/6K | 50W | 6000K | BU±15° | 0.68A | 4000 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 62102-MH-ED70/3K | 70W | 3000K | BU±15° | 0.98A | 5600 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED70/4K | 70W | 4200K | BU±15° | 0.98A | 5600 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED70/6K | 70W | 6000K | BU±15° | 0.98A | 4800 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED150/3K | 150W | 3000K | BU±15° | 1.80A | 13300 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED150/4K | 150W | 4200K | BU±15° | 1.80A | 13300 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED150/6K | 150W | 6000K | BU±15° | 1.80A | 12500 LM | 10000 h | E26/E27 | ED54 | Clear | 65 |
| 862102-MH-ED250/3K | 250W | 3000K | BU±15° | 2.15A | 25000 LM | 10000 h | E39/E40 | ED90 | Clear | 65 |
| 862102-MH-ED250/4K | 250W | 4200K | BU±15° | 2.15A | 25000 LM | 10000 h | E39/E40 | ED90 | Clear | 65 |
| 862102-MH-ED250/6K | 250W | 6000K | BU±15° | 2.15A | 20500 LM | 10000 h | E39/E40 | ED90 | Clear | 65 |
| 862102-MH-ED400/3K | 400W | 3000K | BU±15° | 3.25A | 38000 LM | 10000 h | E39/E40 | ED118 | Clear | 65 |
| 862102-MH-ED400/4K | 400W | 4200K | BU±15° | 3.25A | 38000 LM | 10000 h | E39/E40 | ED118 | Clear | 65 |
| 862102-MH-ED400/6K | 400W | 6000K | BU±15° | 3.25A | 32000 LM | 10000 h | E39/E40 | ED118 | Clear | 65 |
| High Wattage Metal Halide Lamps(1000W/ 1500W 2000W Tubular/BT) | ||||||||||
| Order no. | Wattage | Color Temperature | Voltage | Current | Luminous Flux | Average Life | Base | Bulb Type | Bulb Finish | CRI |
| 862102-MH-T1000W/4K | 1000W | 4200K | 135V | 8.25A | 110000 LM | 6000 h | E40 | T | Clear | 65 |
| 862102-MH-T1000W/6K | 1000W | 6000K | 135V | 8.25A | 80000 LM | 6000 h | E40 | T | Clear | 65 |
| 862102-MH-T2000W/4K | 2000W | 4200K | 135V | 16.5A | 240000 LM | 5000 h | E40 | T | Clear | 65 |
| 862102-MH-BT1000W/4K | 1000W | 4200K | 265V | 4.3A | 110000 LM | 6000 h | E40 | BT | Clear | 65 |
| 862102-MH-BT1500W/4K | 1500W | 4200K | 268V | 6.2A | 150000 LM | 6000 h | E40 | BT | Clear | 65 |
| 862102-MH-BT1000W/6K | 1000W | 6000K | 265V | 4.3A | 80000 LM | 6000 h | E40 | BT | Clear | 65 |
| 862102-MHB-T2000W/4K | 2000W | 4200K | 230V | 9.3A | 24000 LM | 5000 h | E40 | BT | Clear | 65 |
