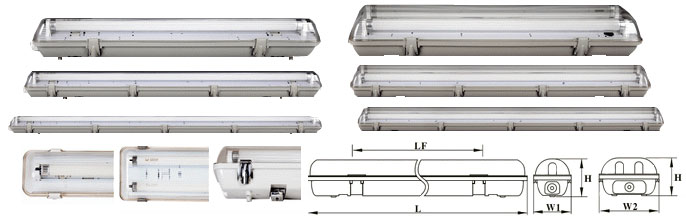

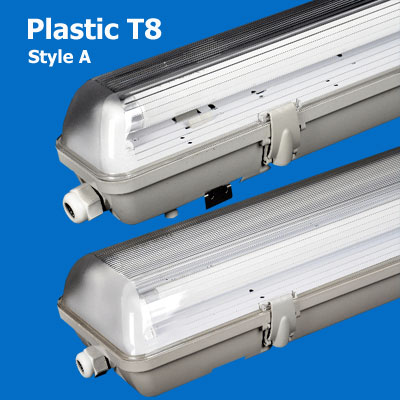

Plastic T8 Waterproof Lighting 635102
Waterproof T8 fluorescent lighting fixture.
LED tube or fluorescent tube.
Certification:TUV-CE,TUV-EMC,TUV-CB,SAA,CCC
Function:waterproof, dust proof,anti-corrosive.
natural silicon gel gasket used in the housing ,PC clips or Staineless steel clips for locking and waterproof cable gland on side of the housing to ensure good waterproof function.
Material:many types combinations between housing and diffuser to meet different requests:
ABS housing Polycarbonate(PC) diffuser.
Polycarbonate (PC) housing Polycarbonate (PC) diffuser.
Polycarbonate (PC) wire clips to ensure electrical safety.
Prismatic diffuser with unique shape design to get average ray,efficient usage of light and good dazzle-proof effect.
Description
Plastic Waterproof T8 fluorescent lighting fixture.
ABC PC Waterproof T8 fluorescent lighting.
PC PC Waterproof T8 fluorescent lighting
Easy and quick to installation under ceiling or on surface.
Plastic gear tray holder connected to the housing for easy maintenance.
Closing clips material:PC or stainless steel.
Application: wet room,kitchen,workshop,carpark,chemical factory, poultry barn etc.
Options: emergency kit and microwave motion sensor.
| Order no. | Watt | Material | IP Rating | Dimension LHW | Box Dim | Carton Dim | Qty/Carton | N.Weight | G.Weight |
| 635102-118A | 1x18W | ABS PC | IP 65 | 660x105x100mm | 680x105x70mm | 690x220x370mm | 10 pcs | 9.0kg | 10.5kg |
| 635102-118B | 1x18W | PC PC | IP 65 | 660x105x100mm | 680x105x70mm | 690x220x370mm | 10 pcs | 9.0kg | 10.5kg |
| 635102-218A | 2x18W | ABS PC | IP 65 | 660x105x160mm | 680x165x70mm | 690x300x350mm | 8 pcs | 9.0kg | 11kg |
| 635102-218B | 2x18W | PC PC | IP 65 | 660x105x160mm | 680x165x70mm | 690x300x350mm | 8 pcs | 9.0kg | 11kg |
| 635102-136A | 1x36W | ABS PC | IP 65 | 1270x105x100mm | 1290x105x70mm | 1300x300x230mm | 8 pcs | 12.8kg | 14.8kg |
| 635102-136B | 1x36W | PC PC | IP 65 | 1270x105x100mm | 1290x105x70mm | 1300x300x230mm | 8 pcs | 12.8kg | 14.8kg |
| 635102-236A | 2x36W | ABS PC | IP 65 | 1270x105x160mm | 1290x165x70mm | 1300x230x350mm | 6 pcs | 13.5kg | 15.5kg |
| 635102-236B | 2x36W | PC PC | IP 65 | 1270x105x160mm | 1290x165x70mm | 1300x230x350mm | 6 pcs | 13.5kg | 15.5kg |
| 635102-158A | 1x58W | ABS PC | IP 65 | 1570x105x100mm | 1590x105x70mm | 1600x230x230mm | 6 pcs | 16kg | 17.5kg |
| 635102-158B | 1x58W | PC PC | IP 65 | 1570x105x100mm | 1590x105x70mm | 1600x230x230mm | 6 pcs | 16kg | 17.5kg |
| 635102-258A | 2x58W | ABS PC | IP 65 | 1570x105x160mm | 1590x165x70mm | 1600x300x185mm | 4 pcs | 14.5kg | 15.5kg |
| 635102-258B | 2x58W | PC PC | IP 65 | 1570x105x160mm | 1590x165x70mm | 1600x300x185mm | 4 pcs | 14.5kg | 15.5kg |
