Solar Street Lights System 427301

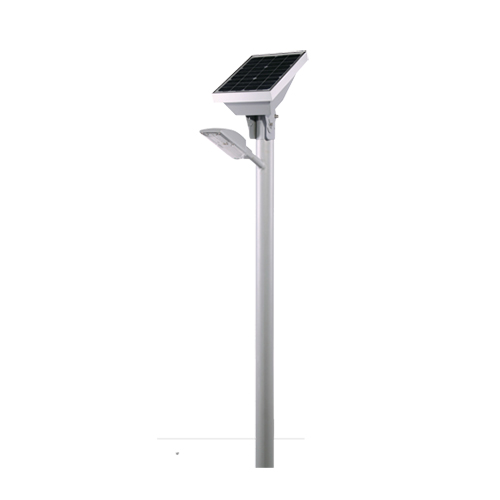

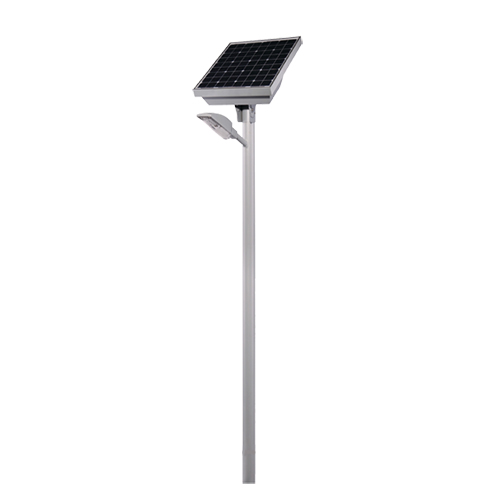

LED Solar street lights

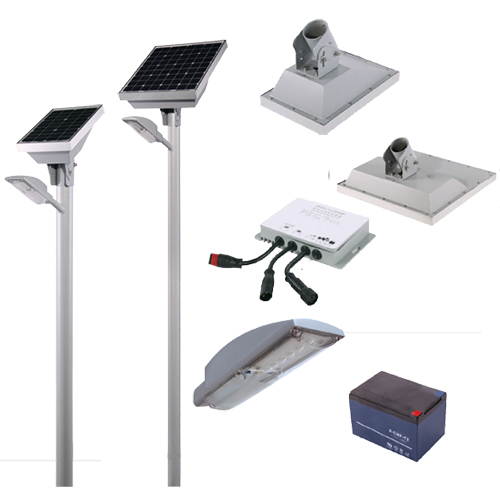

a.Solar panel,battery,solar control system are combined together,easy for installation and maintenance.
b.The angle of inclination for installation of solar panel can be 10 degree to 50 degree,meets the requirement in global.Meantime,the calibration device ensure the same angle of installation.
c.The new design of light distribution,deeply considering the vertical illumination when person walks on it, enlarge the vertical illumination area,make the illumination to be more uniform.
d.Optimize the software calculation of solar controller,increast the brightness of lamp,improve the the working time by 80%,extended the lifetime of battery by 1-3 years.
Description
The following solar power system sized is just for reference purpose only, different geographic locations have different duration of sunshine which determines the size of required solar panels and batteries, we can make specific solar system as your local solar radiation and individual requirements,then give you the specific quotation.
| Order no. | Pole Height | Working hours | Rainy day backup | Recommended road width | Item | Specification |
| 427301-A | 3m | 6-12 hours perday | 3-8 Days | 3-5m road single side installation | Working Voltage | DC12V |
| Solar panel | Mono,17V/40W | |||||
| Battery | 12V/17AH | |||||
| Pretection grade | IP65 | |||||
| Lamp height | 2.8M | |||||
| Weight | 20KGS | |||||
| Dimension | 670*640*377mm | |||||
| Installation Pipe Diameter | Φ76mm | |||||
| 427301-B | 3m | 6-12hours perday | 3-8 Days | 3-5m road single side installation | Working voltage | DC12V |
| Solar panel | Mono,17V/15W | |||||
| Battery | 12V/12AH | |||||
| Pretection grade | IP65 | |||||
| Lamp height | 2.8M | |||||
| Weight | 14KGS | |||||
| Dimension | 519*359*498mm | |||||
| Installation Pipe Diameter | Φ76mm |
