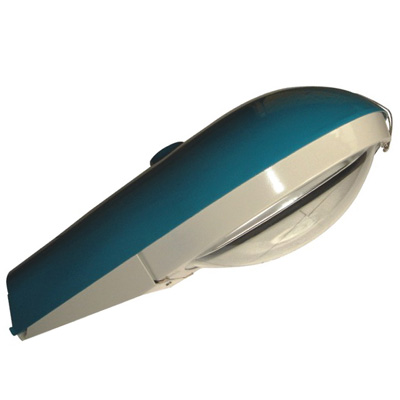

Street Lights 128117

Cobra Head Street Lighting
– HPS/MH classic street lights fixture.
– Die casting aluminum body.
– Flat or curved tempered glass lampshade.
– High purity aluminum reflector.
– Order SKU No.: 128117

SKU: 128117 Category:


Street lights 128117:
-Lighting dimension: 660*340*240 mm.
-Sodium Vapor lamps Max 400W, Vapor Metallic 400W.
-Lighting fixture Body: aluminum die-casting. full RAL colur.
-Reflector:Chemically polished aluminum, anodized and sealed.
-Diffuser: Glass.
-Souket: E40.
-Pole fixed: 60mm.

Cobra head lights fixture with heavy duty die cast aluminum housing.
Precision die-cast aluminum housing with gray finish/Standard construction is IP55. The fixture has a polished aluminum reflector and the door seals with a silicone gasket preventing moisture and dust. The aluminum reflector is designed for maximum lumen distribution.

Great for multiple lighting applications:
Cobra head fixtures are ideal for perimeter and security lighting. Use for loading platforms, parking facilities & parking lots, roadway lighting, rural homes, public entrances, perimeters or pathways.

Cobra Head Street Lighting Fixture 250 Watt Metal Halide Drop Lens
Street Light fixture includes bulb, ballast kit, socket, glass lens.
Cobra head street lighting fixtures specifications:
Manufacturer: Appdy China
Heat & Impact Resistant Borosilicate Glass Lens
Precision die-cast aluminum housing with gray finish/Standard construction is IP55
Fixture Wattage: 250 Watts
Photocell available: Optional photocell & photo control receptacle (make selection)

-High pressure die-casting aluminum body, surface with electric-static powder spraying treatment.
-Finishes: any RAL-color upon request.
-Heatproof silicon sealing gasket and with tempered glass cover.
-High purity reflector one piece pressed electro-polished anodized aluminum.
-The gear and lamp compartment can be easily accessed by opening the fore stainless steel hook.
-For quick and safety inspection the luminaries is supplied with anti-tipping cover device.
-Especial lamp holder better for HPS and MH lamp. socket slip device on the lamp holder.
-High temperature silicon insulated conductors are used throughout.
-Stainless steel clips and screws, integral design for fixture and gear box.
-Products key tag street lighting fixture supplies.
-Photo control base: optional
-Suitable for either post top entry and side entry max 62mm. base different model.
-Thermal toughened glass. thickness 4mm or 5mm,flat or curve optional or PC.
-Anti vacuum device.
-Popular street lighting fixture supplies model.
-Both gear trays are completed with lamp holder and/or electrical connectors for fast replacement and easy maintenance.
-Designed in accordance with relevant European Standards: EN 60598/1 and China GB Standard.
-Install height 8m to 12m.
-Lifespan: 50,000 hours above.
-Pole install diameter 40mm or 60mm.
-Specification is optional for different configure and request.
-Packing information street lighting fixture supplies: export standard package.

Tips: One of study comparing metal halide and high-pressure sodium lamps showed that at equal photopic light levels, a street scene illuminated at night by a metal halide lighting system was reliably seen as brighter and safer than the same scene illuminated by a high pressure sodium system.
Street lights commonly uses high-intensity discharge lamps, often HPS high pressure sodium lamps.
Such lamps provide the greatest amount of photonic illumination for the least consumption of electricity. White light sources have been shown to double driver peripheral vision and improve driver brake reaction time by at least 25%. When street lights calculations are used, HPS lamp performance needs to be reduced by a minimum value of 75%.
