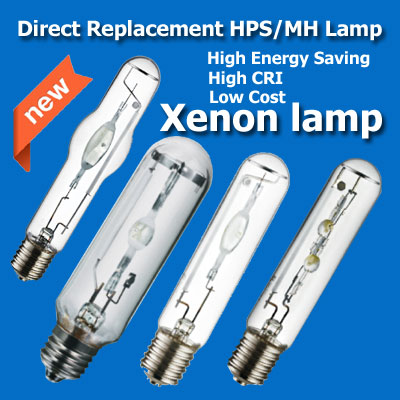

Xenon Lamps 862104
Xenon is new technology and super Matal Halide Lamp.
HPS/MH lamps direct replacement,no need replacement ballast.
Perfect matched with te ballast of HPS and MH.
4300k xenon lamp radiates the similar light as the sun.
Xenon lamp saves 40% energy more then Matal Halide Lamp.
Xenon lamp CRI higher 20% more than Matal Halide Lamp.
It provides better lighting environment: objects is more vivid and natural under the light of xenon lamp.
2000K to 3800K color temperature also available.
Description
Xenon lamp Series Specifications:

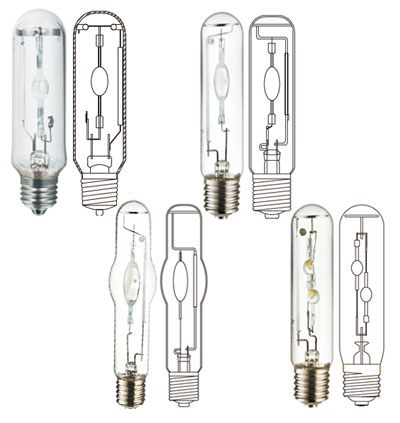

| High Pressure Sodium lamp (HPS lamp) direct replacement model: | |||||||||
| Order no. | Wattage | Color Temperature | Luminous Efficacy | Luminous Flux | CRI | Average Life | Lamp holder | Dimension | Starting Voltage |
| 862104-HPS70E40 | 70W | 4300K | >90 lm/w | >6300 LM | >70 | >15000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-HPS100E27 | 100W | 4300K | >110 lm/w | >11000 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-HPS100E40 | 100W | 4300K | >110 lm/w | >11000 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-HPS150E27 | 150W | 4300K | >110 lm/w | >16500 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-HPS150E40 | 150W | 4300K | >110 lm/w | >16500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-HPS250E40 | 250W | 4300K | >110 lm/w | >27500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-HPS400E40 | 400W | 4300K | >110 lm/w | >44000 LM | >70 | >12000 h | E40 | D65x275 mm | 4000-5000V |
| Matal Halide Lamp (MH lamp) direct replacement model: | |||||||||
| Order no. | Wattage | Color Temperature | Luminous Efficacy | Luminous Flux | CRI | Average Life | Lamp holder | Dimension | Starting Voltage |
| 862104-MH70E27K4 | 70W | 4300K | >110 lm/w | >7700 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH70E27K5 | 70W | 5600K | >110 lm/w | >7700 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH100E27K4 | 100W | 4300K | >110 lm/w | >11000 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH100E27K5 | 100W | 5600K | >110 lm/w | >11000 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH100E40K4 | 100W | 4300K | >110 lm/w | >11000 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH100E40K5 | 100W | 5600K | >110 lm/w | >11000 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH150E27K4 | 150W | 4300K | >110 lm/w | >16500 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH150E27K5 | 150W | 5600K | >110 lm/w | >16500 LM | >70 | >10000 h | E27 | D39x155 mm | 4000-5000V |
| 862104-MH150E40K4 | 150W | 4300K | >110 lm/w | >16500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH150E40K5 | 150W | 5600K | >110 lm/w | >16500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH175E40K4 | 175W | 4300K | >110 lm/w | >19200 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH175E40K5 | 175W | 5600K | >110 lm/w | >19200 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH200E40K4 | 200W | 4300K | >110 lm/w | >22000 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH200E40K5 | 200W | 5600K | >110 lm/w | >22000 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH250E40K4 | 250W | 4300K | >110 lm/w | >27500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH250E40K5 | 250W | 5600K | >110 lm/w | >27500 LM | >70 | >10000 h | E40 | D48x220 mm | 4000-5000V |
| 862104-MH400E40K4 | 400W | 4300K | >110 lm/w | >44000 LM | >70 | >12000 h | E40 | D65x275 mm | 4000-5000V |
| 862104-MH400E40K5 | 400W | 5600K | >110 lm/w | >44000 LM | >70 | >12000 h | E40 | D65x275 mm | 4000-5000V |
| 862104-MH600E40K4 | 600W | 4300K | >110 lm/w | >66000 LM | >60 | >5000 h | E40 | D78x340 mm | 4000-5000V |
| Mark: 862104-MH600E40K4 need matched 600W APPDY’s Xenon ballast. can not direct replacement. | |||||||||

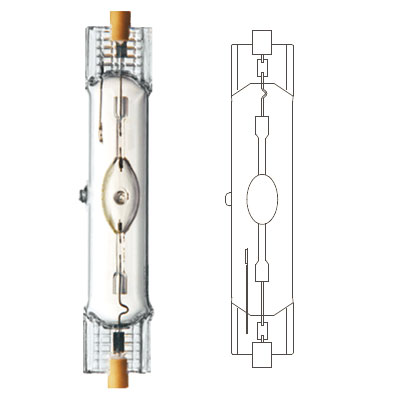

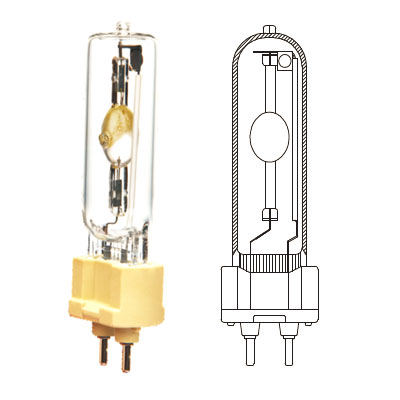

| G12 and R7S Matal Halide Lamp (MH lamp) direct replacement model: | |||||||||
| 862104-MH50G12K3 | 50W | 3000K | >110 lm/w | >5500 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH50G12K4 | 50W | 4300K | >110 lm/w | >5500 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH70G12K3 | 70W | 3000K | >110 lm/w | >7700 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH70G12K4 | 70W | 4300K | >110 lm/w | >7700 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH100G12K3 | 100W | 3000K | >110 lm/w | >11000 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH100G12K4 | 100W | 4300K | >110 lm/w | >11000 LM | >80 | >6000 h | G12 | D23x103 mm | 4000-5000V |
| 862104-MH150G12K3 | 150W | 3000K | >110 lm/w | >16500 LM | >80 | >6000 h | G12 | D23x110 mm | 4000-5000V |
| 862104-MH150G12K4 | 150W | 4300K | >110 lm/w | >16500 LM | >80 | >6000 h | G12 | D23x110 mm | 4000-5000V |
| 862104-MH70R7SK3 | 70W | 3000K | >110 lm/w | >7700 LM | >80 | >6000 h | R7S | D21x118 mm | 4000-5000V |
| 862104-MH70R7SK4 | 70W | 4300K | >110 lm/w | >7700 LM | >80 | >6000 h | R7S | D21x118 mm | 4000-5000V |
| 862104-MH100R7SK3 | 100W | 3000K | >110 lm/w | >11000 LM | >80 | >6000 h | R7S | D23x136 mm | 4000-5000V |
| 862104-MH100R7SK4 | 100W | 4300K | >110 lm/w | >11000 LM | >80 | >6000 h | R7S | D23x136 mm | 4000-5000V |
| 862104-MH150R7SK3 | 150W | 3000K | >110 lm/w | >16500 LM | >80 | >6000 h | R7S | D23x136 mm | 4000-5000V |
| 862104-MH150R7SK4 | 150W | 4300K | >110 lm/w | >16500 LM | >80 | >6000 h | R7S | D23x136 mm | 4000-5000V |
