LED Flood Lights 527209

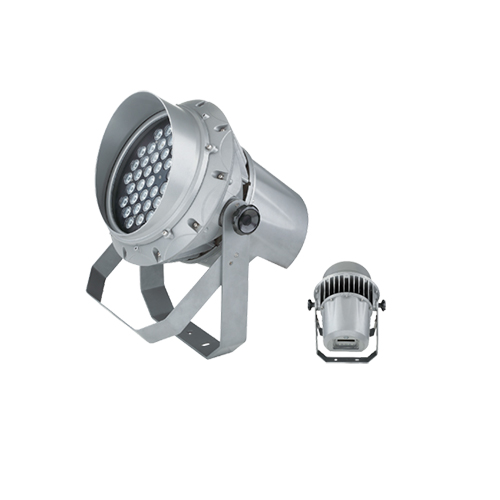

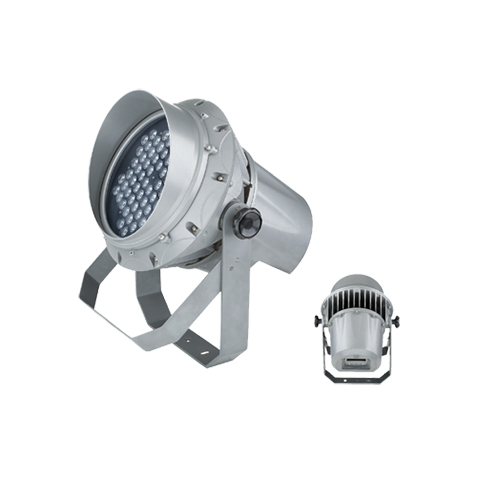

LED Flood Lights
a.Creative design and many proprietary technologies in this LED projector light,not only make it at the top-level at this area,but also make the light to be an artwork.
b.The light body is using the high pressure diecast aluminum,with electrostatic plastic coating.Resist the impact and friction.Single or double bracket to work with.Also diffuser to against glare isavailable.
c.12 kings of dynamic routines inside.The creative dimming and mixing technic can achieve the lighting mixing in the distance less than 1m,making pure and magnificent lighting.
Description
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
Features:
a.Installation pipe diameter:Φ11x100mm.
b.Input Voltage(V):AC100-277.
c.Frequency range:50/60Hz.
d.Control mode:CC/DMX512.
e. Beam angle:10° 25° 40° 60°
f. Working temperature:-35 to 50C.
g.LED Lifetime:70,000hours.
h.IP66 suifable for wet location.
| ORDER NO | 527209A | 527209B | 527209C | 527209D |
| LED QTY | 72PCS | 72PCS | 54PCS | 54PCS |
| RATED POWER | 113/163W | 171W | 85/128W | 129W |
| COLOR | 72 SINGLE/18R18G18B18W | 72SINGLE | 54SINGLE/14R14G14B12W | 54 SINGLE |
| LUMINOUS FLUX | 9601/5327LM | 12358LM | 7201/4240LM | 9290LM |
| N.W | 12.4KGS | 12.4KGS | 9.5KGS | 9.5KGS |
| G.W | 13.4KGS | 13.4KGS | 10.2KGS | 10.2KGS |
| DIMENSION(MM) | 410*400*520 | 410*400*520 | 365*350*475 | 365*350*475 |
