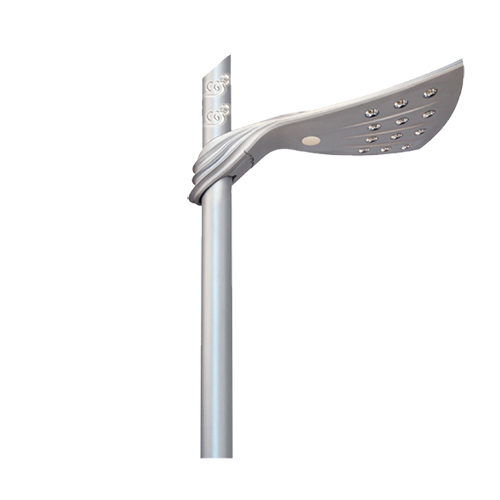

LED Garden Lights 523202
LED Garden Lights
a.Design fashionable,streamline make more simple,more fashionable.
b.Adopt multiple-chip module,light source structure modularity,easy maintenance and assemble.
c.One button to open the electric box,easy operation.
d.With sensor control technology,adjust the power according to pedestrian.
e.Reasonable light distribution,uniform,high utilization ratio of light.
f.Convenient to install with pole.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Color Temperature:6500/4000/3000k.
b.Input Voltage is AC100-277V.
c.Frequency Range:50/60Hz.
d.Power Factor:PF>0.9.
e.Color rendering Index:>70.
f.Installation pipe diameter:Φ114mm
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i:IP65.
j.Dimension(mm):987*623*405
| ORDER NO. | LED QTY | RATED POWER | LUMINOUS FLUX | N.W | G.W |
| 523202A | 48PCS | 84W | 7075/6549/5427LM | 10.65KGS | 13.90KGS |
| 523202B | 36PCS | 59W | 5414/5012/4153LM | 10.65KGS | 13.90KGS |
| 523202C | 24PCS | 41W | 3255/3014/2501LM | 10.45KGS | 13.70KGS |
| 523202D | 12PCS | 31W | 2261/2093/1736LM | 10.45KGS | 13.70KGS |
