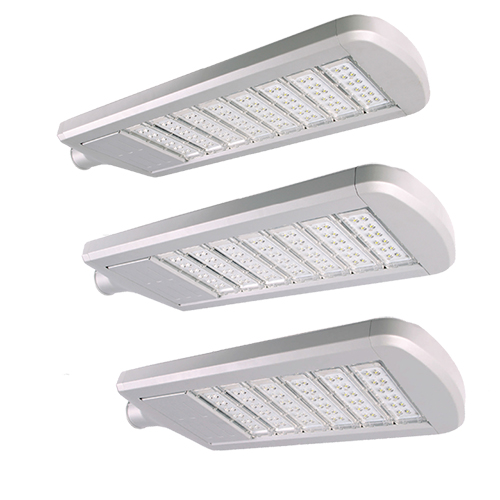

LED Street Lights 528322
LED Street Lights
a.Shape design with imitation of fluid dynamics concept,simple and easy-replaceable,self-clean design guarantee the LED light clean.
b. Modular design,customers can choose power according to their own requirements.
c.Shape with dust free design,good for heat radiation.
d.Convectional design,good for heat radiation.
e.Special dust free design.
f.Portable junction box,easy to install and maintain.
g.IP67 modular design adopts ASTM6063 material ,surface with black anodized treatment result in bettet heat radiation ability.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Shape design with imitation of fluid dynamics concept,simple and easy-replaceable,self-clean design guarantee the LED light clean.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage is AC200-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f.Color rendering Index:>70.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP66 suitable for wet location.
j.Installation Pipe Diameter:Φ60mm.
k.Packing Size:1030*405*170mm.
| ORDER NO. | LED QUANTITY | RATED POWER | LUMINOUR FLUX | INSTALLATION HEIGHT | N.W | G.W |
| 528322A | 96PCS | 229W | 25450/23570/19090LM | 12-14M | 13.5JKGS | 14.50KGS |
| 528322B | 84PCS | 200W | 22050/20420/16540LM | 11-13M | 12.50KGS | 13.50KGS |
| 528322C | 72PCS | 176W | 19380/17940/14540LM | 10-12M | 10.50KGS | 11.50KGS |
