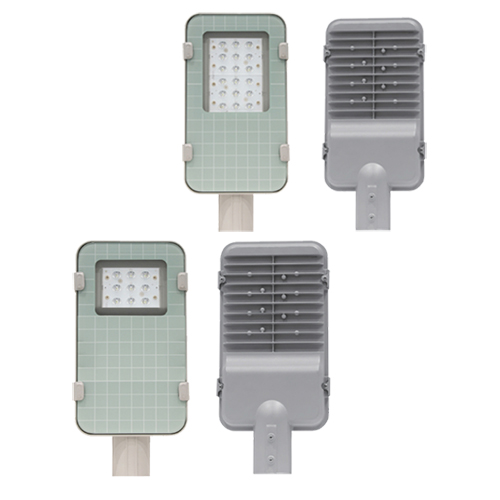

LED Street Lights 528324
LED Street Lights
a.High strength die-casting aluminum alloy cover with electrostatic spray surface treatment.
b.Diffuser with 4.0mm super white toughened glass.
c.Adopt modular light distribution lens.
d.Simple structure,assembly,installation and maintenance.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.High strength die-casting aluminum alloy cover with electrostatic spray surface treatment.
b. Color temperature 3000K 4000K 6500K optional.
c.Input Voltage(V):AC100-277.
d.Frequency Range:50/60Hz.
e.The power factor is greater than 0.9.
f.CRI (Ra>):70.
g.Working Temperature(℃):-35 to 50.
h.System rating is at 70,000 hours.
i.IP65.
j.Installation Pipe Diameter:Φ48mm.
k.Installation height:3-6M.
l.Dimension(mm):475*265*165
| ORDER NO. | LED QUANTITY | RATED POWER | LUMINOUS FLUX | N.W | G.W |
| 528324A | 18PCS | 63W | 5360/5040/4270LM | 2.33KGS | 3.10KGS |
| 528324B | 18PCS | 43W | 3950/3650/2960LM | 2.03KGS | 2.80KGS |
| 528324C | 12PCS | 30W | 2780/2580/2090LM | 2.03KGS | 2.80KGS |
| 528324D | 9PCS | 22W | 1990/1840/1490LM | 1.83KGS | 2.60KGS |
