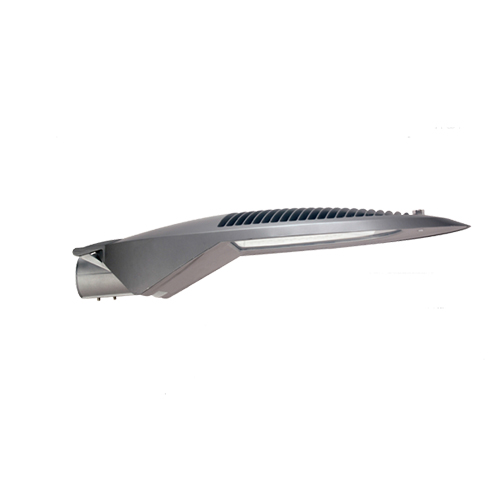

LED Street Lights 528328
LED Street Lights
a.Excellent heat radiation,optical and electrical ability.
b.Die-cast aluminum body with powder-coating and anti-corrosion surface treatment.
c.Diffuser with 4.00mm super withe toughened glass.
e.Humanized design concept,easy to install and maintain.
f.When vertical install LED light,adjust angle is from 0-10° .
g.When horizontal install LED light,adjust angle is ±5° .
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Excellent heat radiation ,optical and electrical ability.
b.Color Temperature:6500/4000/3000k.
c.Input Voltage is AC100-277V.
d.Frequency Range:50/60Hz.
e.Power Factor:PF>0.9.
f. Color rendering Index:>70.
g.Temperature Rated at -35 to 50C.
h.System rating is at 70,000 hours.
i.IP65.
j. Installation Pipe Diameter:Φ60mm/Φ76mm.
k.Dimension(mm):1005*433*245mm.
| ORDER NO | 528328A | 528328B | 528328C | 528328D | 528328E | 528328F |
| LED QUANTITY | 112PCS | 96PCS | 80PCS | 112PCS | 96PCS | 80PCS |
| RATED POWER | 127W | 114W | 97W | 172W | 143W | 138W |
| LUMINOUS FLUX | 14610/13530/10960LM | 13530/12530/10150LM | 11650/10790/8740LM | 19080/17670/14310LM | 16720/15490/12540LM | 15320/14190/11490LM |
| INSTALLATION HEIGHT | 10-12M | 9-11M | 8-10M | 10-12M | 9-11M | 8-10M |
| N.W | 10.93KGS | 10.93KGS | 10.62KGS | 10.93KGS | 10.93KGS | 10.62KGS |
| G.W | 12.93KGS | 12.93KGS | 12.62KGS | 12.93KGS | 12.93KGS | 12.62KGS |
