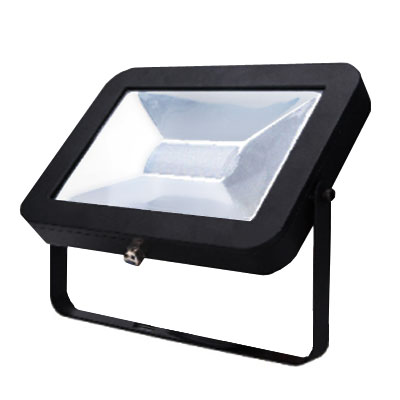

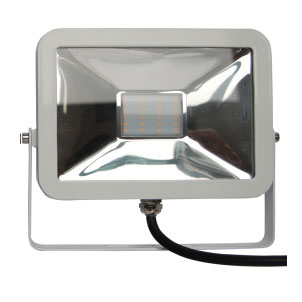

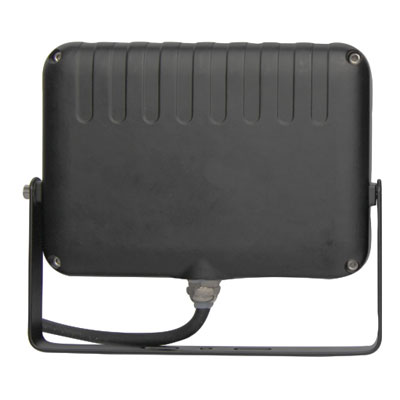

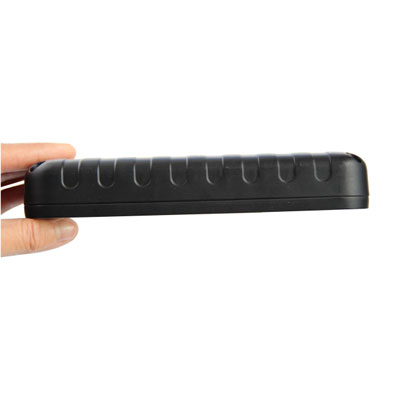

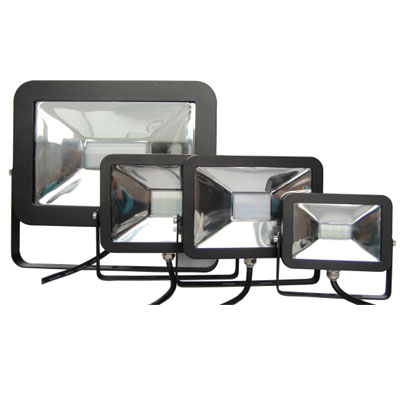

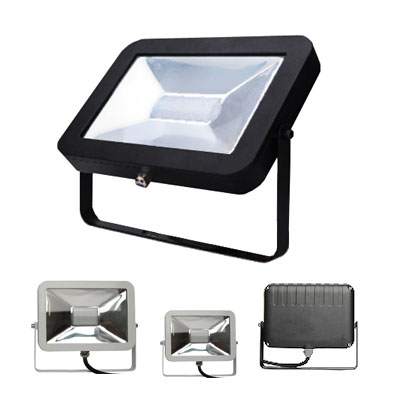

LED Flood lights 527107
SMD LED flood lights
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure alloy reflector cover. Which make the lamp heavy and not easy to break.
b.Bridgelux light source
c.Meanwell driver or other.
d.Dialux simulation available
e.SAA,CE, PSE,ROHS
Description
a.Original raw aluminum material to make the casings. Die-casing aluminum alloy for the casing. With high-strength tempered glass, and also high pure al-loy reflector cover. Which make the lamp heavy and not easy to break.
b.Black / Silver grey/ White for normal color . And also other colors can be avail-able as for custom color.
c.IP65
d.Epistar / Bridgelux LED chip used.
e.2 year warranty for normal.
f. Beam Angle: 120
g.220-240V AC
h.CRI: 75
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
| Order No. | Color Temperature | Luminous Flux | LED Power | Dimension |
| 527107-W10 | WW / NW / CW | 1000/800 LM | SMD 10W | 130x26x127 mm |
| 527107-W20 | WW / NW / CW | 2000/1600 LM | SMD 20W | 180x31x170 mm |
| 527107-W30 | WW / NW / CW | 3000/2400 LM | SMD 30W | 180x31x170 mm |
| 527107-W50 | WW / NW / CW | 5000/4000 LM | SMD 50W | 290x42x270 mm |
