LED Flood Lights 527211

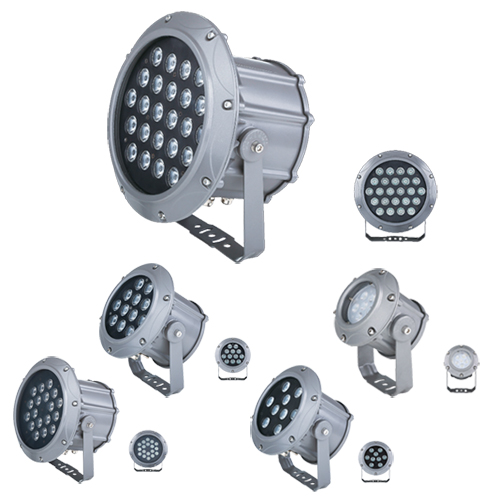

LED Flood Lights
a.Original design,cover made of high-strength tempered glass,anti-impact,abrasion resistant.
b.Powerful features,easy to control,can achieve the logarithmic dimming and mixed light in the distance of less than 1m,transform the light soft and brilliant.
Description
Applications of the occasion.
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea port and so on.
Features:
a.Color:Single/RGB.
b.Installation pipe diameter:Φ8.5x60mm.
c.Input Voltage(V):AC100-277.
d.Frequency range:50/60Hz.
e.Control Mode:CC/DMX512.
f.Working temperature:-35 to 50C.
g.Led lifetime:70,000hours.
h.IP66 suitable for wet location.

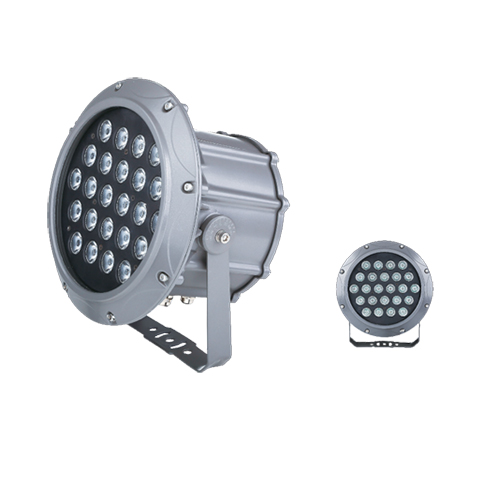

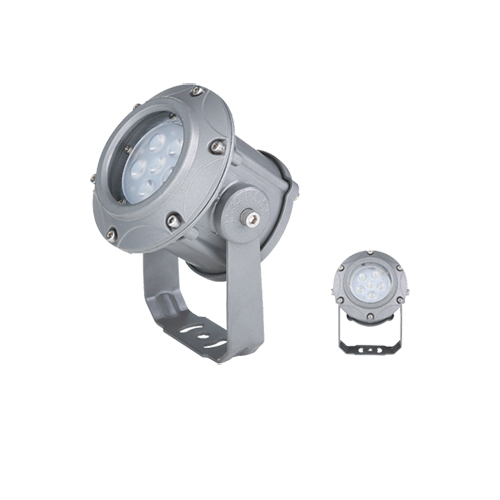

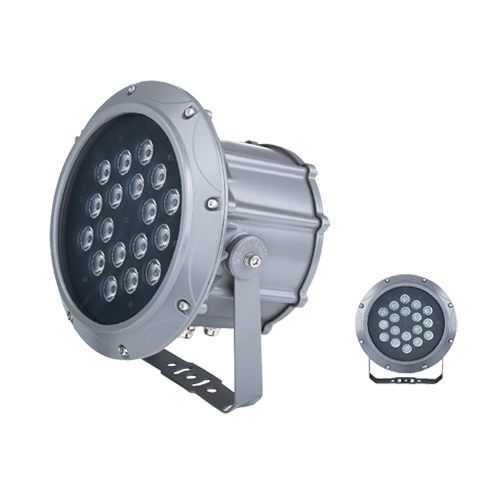

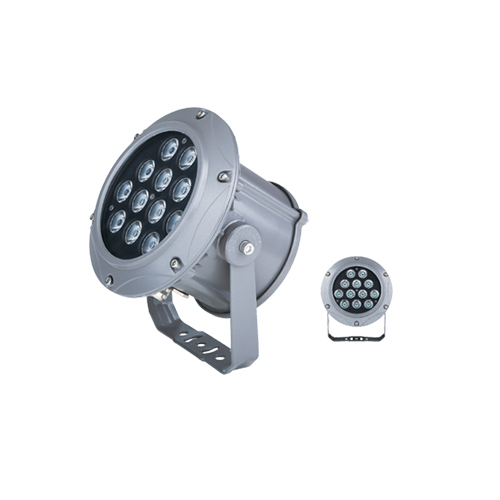

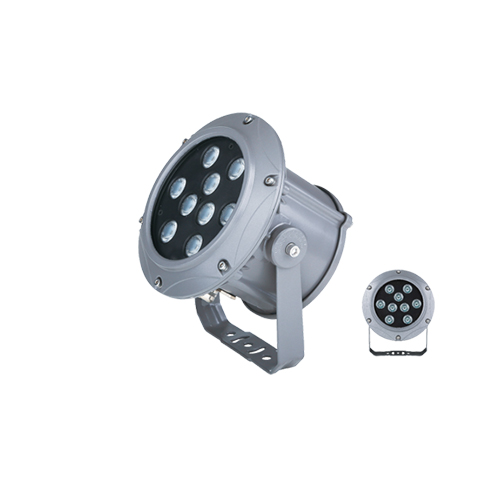

| ORDER NO. | 527211A | 527211B | 527211C | 527211D | 527211E | 527211F | 527211G | 527211H | 527211I | 527211J |
| LED QTY | 24PCS | 24PCS | 18PCS | 18PCS | 12PCS | 12PCS | 9PCS | 9PCS | 6PCS | 6PCS |
| RATED POWER | 29.8/28.2W | 40.3/43W | 23.4/22.2W | 46.2/45W | 15.6/16.2W | 30.8/32W | 12/11.8W | 24/22.4W | 8/7.8W | 17/16W |
| LUMINOUS FLUX | 1951/1057LM | 2380/1289LM | 1621/810LM | 2560/1323LM | 1150/547LM | 1816/865LM | 942/422LM | 1488/639LM | 577/292LM | 911/479LM |
| BEAM ANGLE | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 10° 25° 40° 60° | 25° 40° 60° | 25° 40° 60° |
| N.W(inner) | 3.75KGS | 3.75KGS | 3.6KGS | 3.6KGS | 2.02KGS | 2.02KGS | 1.92KGS | 1.92KGS | 0.95KGS | 0.95KGS |
| N.W(outer) | 29.6KGS | 29.6KGS | 28.8KGS | 28.8KGS | 24.2KGS | 24.2KGS | 22.8KGS | 22.8KGS | 17.1KGS | 17.1KGS |
| G.W(inner) | 4.1KGS | 4.1KGS | 3.95KGS | 3.95KGS | 2.25KGS | 2.25KGS | 2.15KGS | 2.15KGS | 1.08KGS | 1.08KGS |
| G.W(outer) | 32.8KGS | 32.8KGS | 31.8KGS | 31.8KGS | 27KGS | 27KGS | 26.4KGS | 26.4KGS | 19.4KGS | 19.4KGS |
| DIMENSION(inner) | 305*275*260MM | 305*275*260MM | 305*275*260MM | 305*275*260MM | 255*220*235MM | 255*220*235MM | 255*220*235MM | 255*220*235MM | 160*160*220MM | 160*160*220MM |
| DIMENSION(outer) | 675*615*585MM | 675*615*585MM | 675*615*585MM | 675*615*585MM | 720*560*530MM | 720*560*530MM | 720*560*530MM | 720*560*530MM | 530*530*485MM | 530*530*485LM |
