LED High Bay Lights 521206

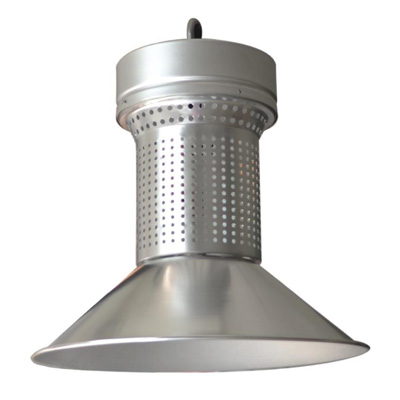

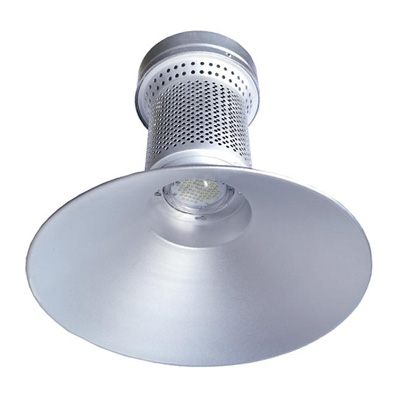

Aluminum heat pipe LED High Bay Lights

Application:
Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.
Features:
a. Heat pipe technology for heat dissipation
b. LED source: Philips Rebel ES
c. Driver: MeanWell
d. Dialux simulation service provided.

SKU: 521206 Category:

Description

Certification: CE ROHS optional
IP 20 /IP65
LED: Philips 40 pcs for 80w. 50 pcs for 100w. 72 pcs for 150w.
Driver: Meanwell
Driver efficiency:>0.9
Warranty: 3 year
Beam Angle: 45/90/120DEG
OP. Frequency :50-60HZ
Input Voltage Range:100-240V AC
Color Rendering Index (CRI): >70
Working Environment: -35-45 C

   Order No.   CCT   Luminous Flux     Dimension (mm)     System Power
521206-W80-WW3000K6860 LM500*500*46588 /- 4W
521206-W80-NW4000K7750 LM500*500*46588 /- 4W
521206-W80-PW5000K7750 LM500*500*46588 /- 4W
521206-W100-WW3000K7700 LM500*500*465168 /- 10W
   521206-W100-WW  4000K9680 LM500*500*465168 /- 10W
521206-W100-WW5000K9680 LM500*500*465168 /- 10W
521206-W150-WW3000K12870 LM500*500*465200 /- 10W
521206-W150-WW4000K14500 LM500*500*465200 /- 10W
521206-W150-WW5000K14500 LM500*500*465200 /- 10W
