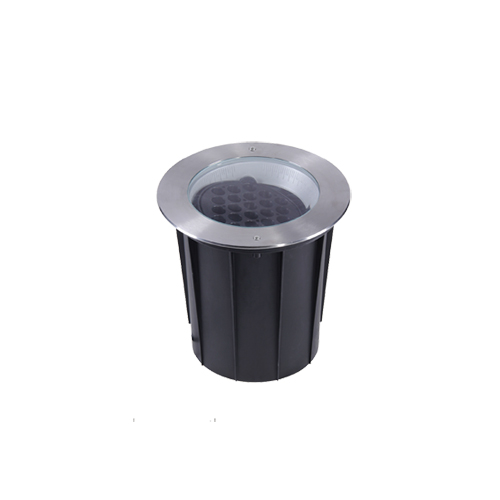

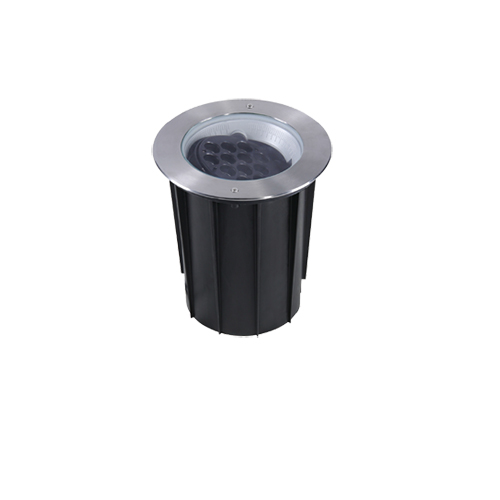

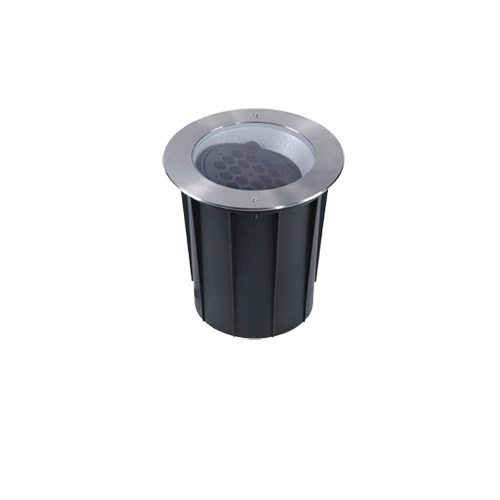

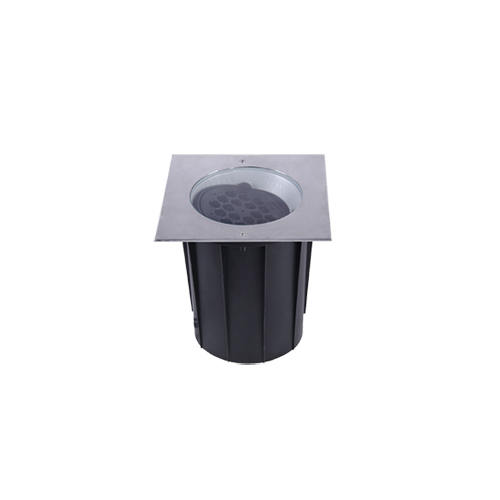

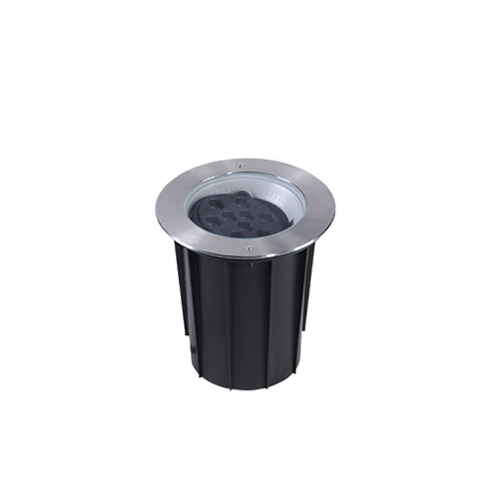

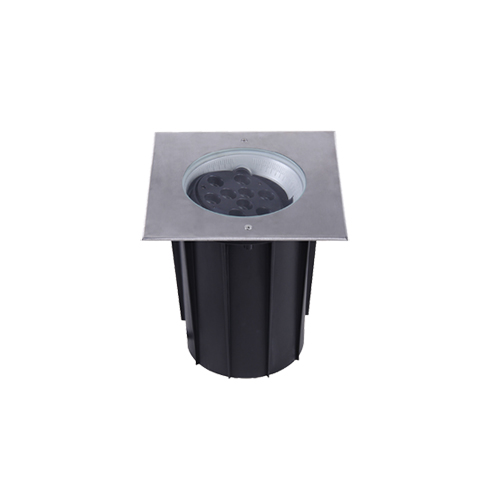

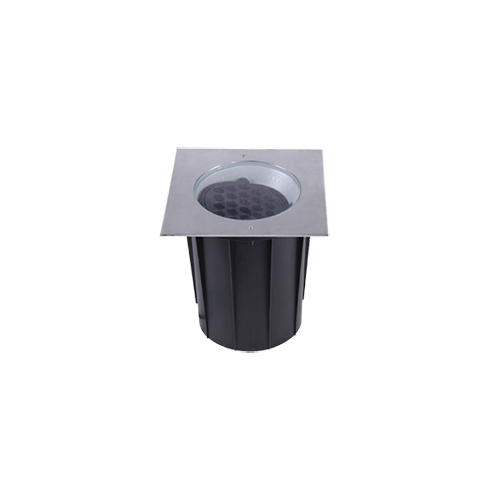

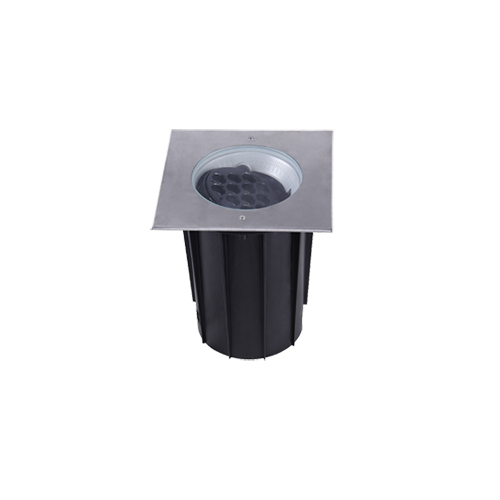

LED Underground Lights 637101
LED Underground Lights
a.With high water proof structure.
b. Considering anti-glare,adopt down lighting level structure and mask frame.The design concept”only see light beam.
c.Product can be used for building, sculpture,trees etc.
d.Energy saving, environment protection.
Description
Applications:
public square, parking lot, parks, streets, etc.
Features:
a.Color:Single/RGB.
b.Input voltage(V):AC100-277,DC24.
c.Control mode:CC/DMX512.
d.Light weight under:2500kgs.
e.Glass surface temperature:40°C.
f.Beam angle:6° 10° 25° 40° 60°.
g.Working temperature:-35 to 50C.
h.Working life:70,000hours.
i.IP67 suitable for wet location.
| ORDER NO. | 637101A | 637101B | 637101C | 637101D |
| LED QUANTITY | 24PCS | 18PCS | 12PCS | 9PCS |
| RATED POWER | 41/38W | 43/40W | 30/28W | 22/21W |
| LUMINOUS FLUX | 2461/1285LM | 1798/890LM | 1265/626LM | 936/470LM |
| N.W | 7.0KGS | 7.6KGS | 3.8KGS | 4.6KGS |
| G.W | 7.5KGS | 8.1KGS | 4.3KGS | 5.1KGS |
| DIMENSION(MM) | 380*371*389 | 380*371*349 | 325*315*338 | 325*315*338 |
