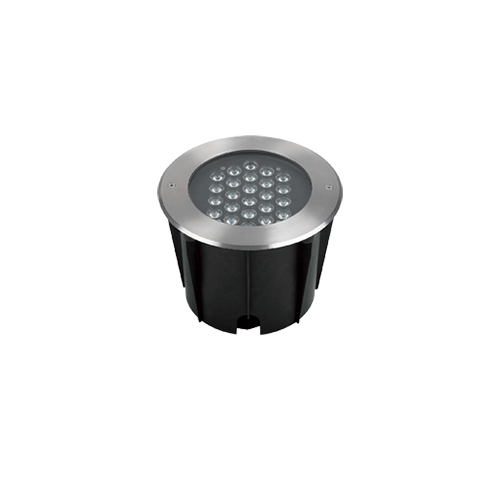

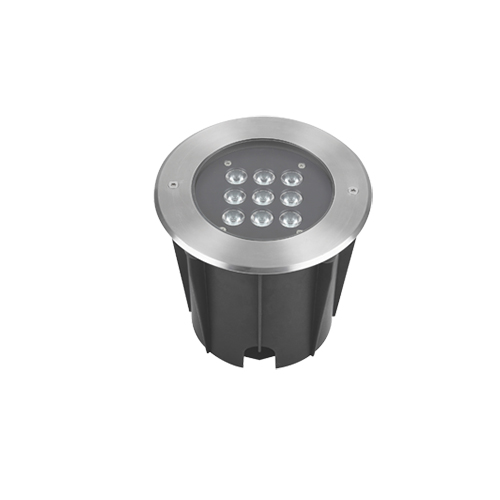

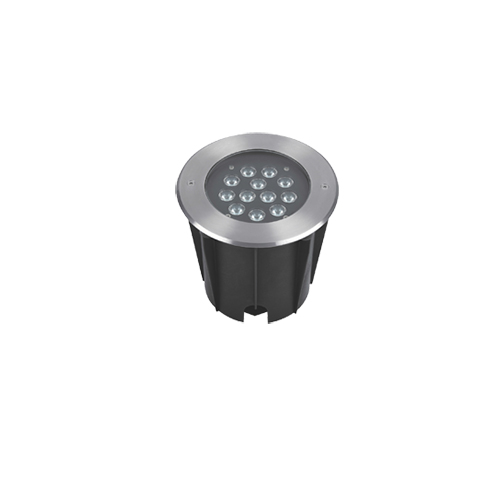

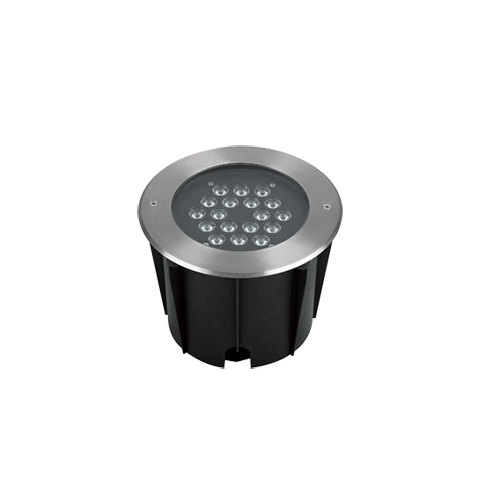

LED Underground Lights 637103
LED Underground Lights
a.The lamp body used high pressure die-casting aluminum.The cover usesstainless steel while the buried barrel uses high-quality corrosion-resistantnylon.
b.The diffuser use thickened toughened glass,having an advantages in impact resistance and abrasion.Meanwhile the diffuser and light cover is at the same level,no fall.
c.The source light adopts high quality LEDs,monochrome or RGB color available.
d.It’s carried out by the DMX512 system so that the light could change incolorful,flowing and other models,getting a magic lighting effect.
e.Humanized design,fif for a wide range demands in applications.
f.Excellent design in heat radiation performance.So that the temperature of the cover is low,which is safe and good protection.
Description
Applications
public square, parking lot, parks, streets,building, sculpture etc.
Features:
a.Color:Single/RGB.
b.Input voltage(V):AC100-277,DC24.
c.Control Mode:CC/DMX512.
d.Light weight under:2500kgs.
e. Glass surface temperature:40°C.
f.Beam angle:10° 25° 40° 60°.
g.Working temperature:-35 to 50C.
h.Working life:70,000hours.
i. IP67 suitable for wet location.
| ORDER NO | LED QTY | RATED POWER | LUMINOUS FLUX | N.W | G.W | DIMENSION(MM) |
| 637103A | 24PCS | 31/27.8W | 2246/1072LM | 3.4KGS | 4.1KGS | 285*144*161 |
| 637103B | 24PCS | 40/43.5W | 2740/1307LM | 3.4KGS | 4.1KGS | 285*144*161 |
| 637103C | 18PCS | 24/22W | 1746/852LM | 3.3KGS | 4.0KGS | 315*315*260 |
| 637103D | 18PCS | 46/45W | 2759/1346LM | 3.4KGS | 4.1KGS | 315*315*260 |
| 637103E | 12PCS | 16/15W | 1125/529LM | 2.5KGS | 3.5KGS | 265*265*260 |
| 637103F | 12PCS | 31/29W | 1778/835LM | 2.5KGS | 3.5KGS | 265*265*260 |
| 637103G | 9PCS | 12.7/12W | 861/407LM | 2.4KGS | 3.4KGS | 265*265*260 |
| 637103H | 9PCS | 23/20W | 1360/643LM | 2.4KGS | 3.4KGS | 265*265*260 |
