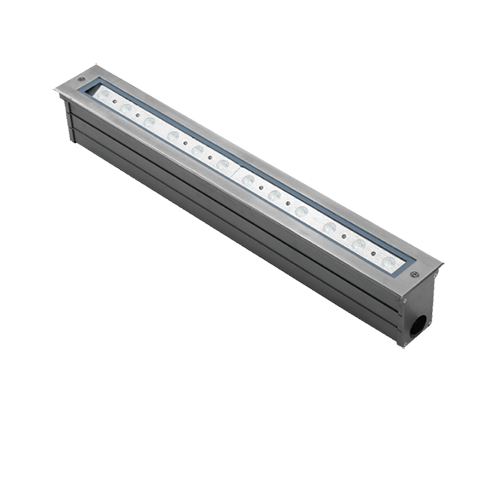

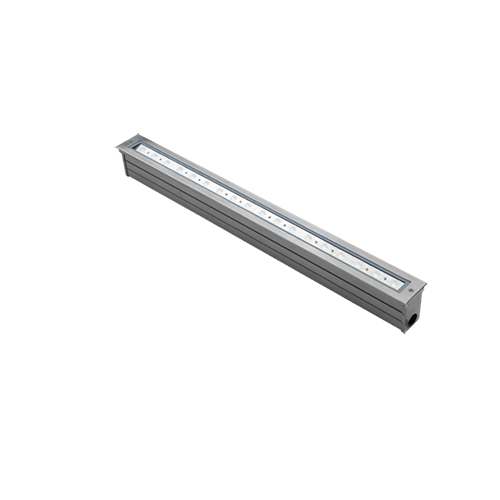

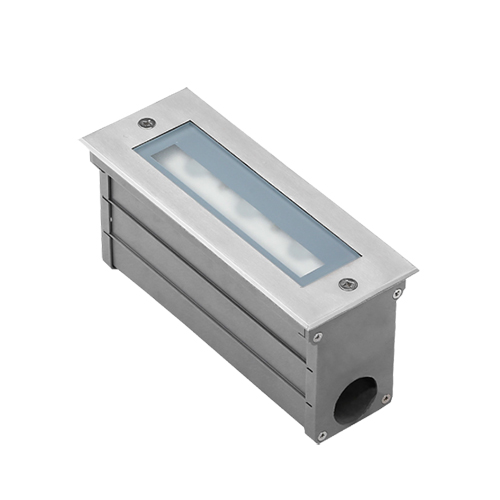

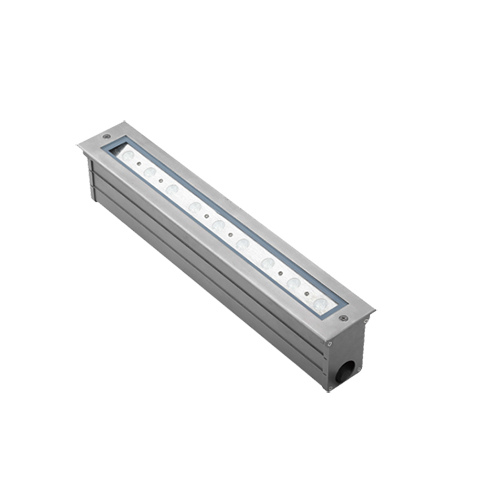

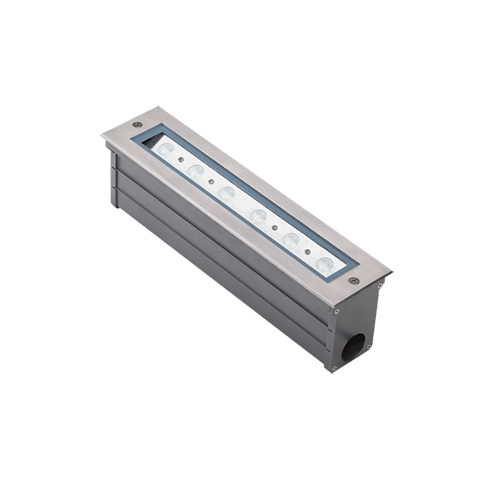

LED Underground Lights 637102

LED Underground Lights

a.The Light body adopts high strength die-casting aluminum material,surface cover adopts stainless steel material.
b.The diffuser adopts thicken toughened glass,glass and surface cover in the same plane,no gap resistance and abrasion resistance.
c.The light source adopts high quality LED product can choose single color or three colors.
d.Can use DMX512 control system,change colorful running water and magic effect.
e.Humanized design suitable for various application occasion.
f.Light fitting surface cover design sufficient heat radiation,safety,good protection.
g.Light cavities and power cavity separation make maintenance more convenient.

SKU: 637102 Category:

Description

Applications

public square, parking lot, parks, streets,building, sculpture etc.

Features:
a.Color:Single/RGB.
b.Input voltage(V):AC100-277,DC24.
c.Control Mode:CC/DMX512.
d.Light weight under:2500kgs.
e. Glass surface temperature:40°C.
f.Beam angle:30x 65°.
g.Working temperature:-35 to 50C.
h.Working life:70,000hours.
i. IP67 suitable for wet location.

ORDER NO.LED QTYRATED POWERFLUMINOUS FLUXN.WG.WDIMENSION(MM)
637102A18PCS23/23.2W1701/842LM5.72KGS6.28KGS1052*144*161
637102B9PCS46.2/45W2696/1330LM5.72KGS6.28KGS1052*144*161
637102C12PCS16/14.8W1133/559LM4.12KGS4.51KGS743*144*161
637102D12PCS32.3/29.8W1790/890LM4.12KGS4.51KGS743*144*161
637102E9PCS12.5W907/429LM3.28KGS3.63KGS588.5*144*161
637102F9PCS25.4/23.3W1432/677LM3.28KGS3.63KGS588.5*144*161
637102G6PCS8.1/9.1W600/292LM2.45KGS2.7KGS434*144*161
637102H6PCS17/15.3W947/422LM2.45KGS2.7KGS434*144*161
637102I3PCS4/4.6W247/88LM1.7KGS1.89KGS285*144*161
637102J3PCS8.6/9W445/139LM1.7KGS1.89KGS285*144*161
