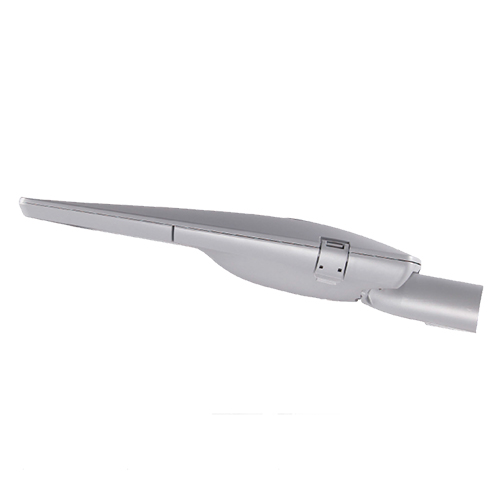

LED Street Lights 528312
LED Street Lights
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b.Luminaire tilt adjustment,side entry:-15° to 15°
c.Luminaire tilt adjustment, post top:0° to 15°
d.Green and environmental.
Description
Application:
City expressway, trunk road, factories, schools, garden, parking lots,pubic parks etc.
Features:
a.Delachable design,use fast turn off power protector makes lamp convenient for maintenance.
b. Color temperature 3000K 4000K 6500K optional.
c.Input Voltage(V):AC100-277.
d.Frequency Range:50/60Hz.
e.The power factor is greater than 0.9.
f.CRI (Ra>):70.
g.Working Temperature(℃):-35 to 50.
h.System rating is at 70,000 hours.
i.IP Rating:IP66.
j.Installation Pipe Diameter:Φ60mm/Φ76mm.
k.Dimension(mm):975*515*180mm.
| ORDER NO. | ELECTRIC CURRENT | LED QUANTITY | RATED POWER | LUMINOUS FLUX | INSTALLATION HEIGHT | N.W | G.W |
| 528312A | 700 | 96PCS | 210W | 22700/21000/19300LM | 10-12M | 12.8KGS | 14.1KGS |
| 528312B | 525 | 72PCS | 118W | 13600/12600/11600LM | 8-10M | 11.3KGS | 13.9KGS |
